CS100 Solar Camera for Construction Sites | 4G/WiFi AI Surveillance with 30x Zoom

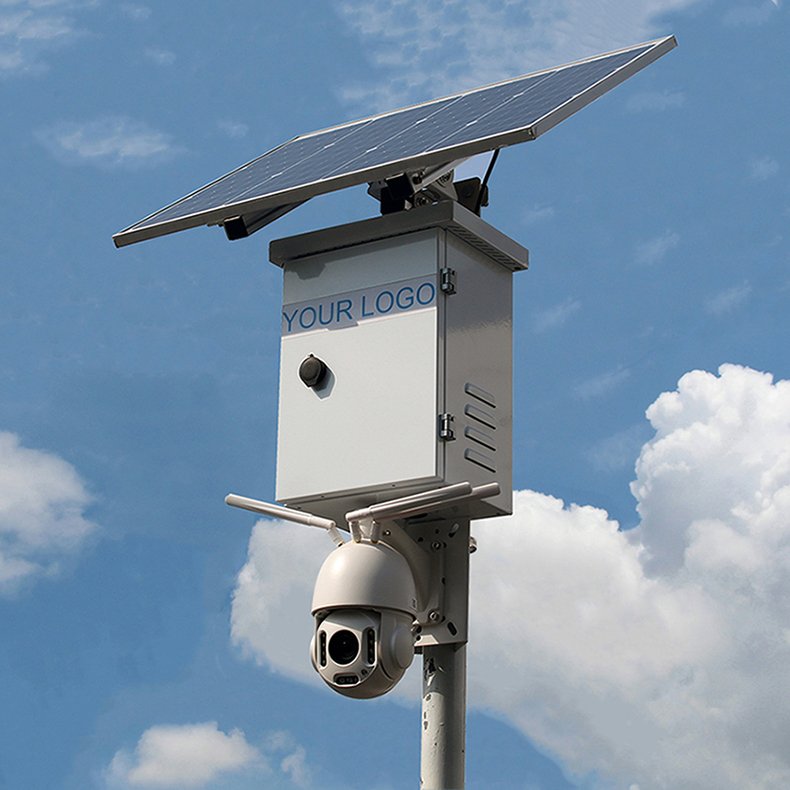

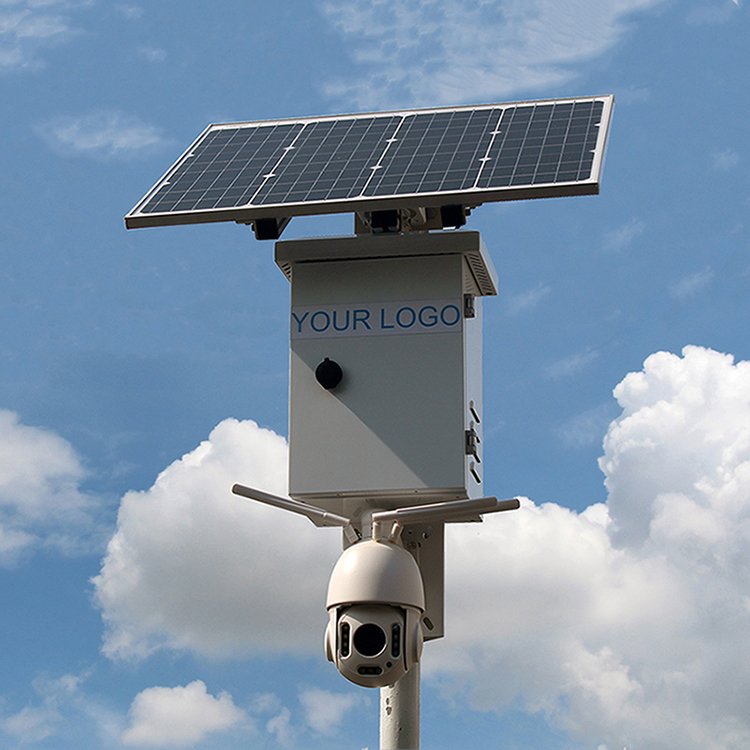

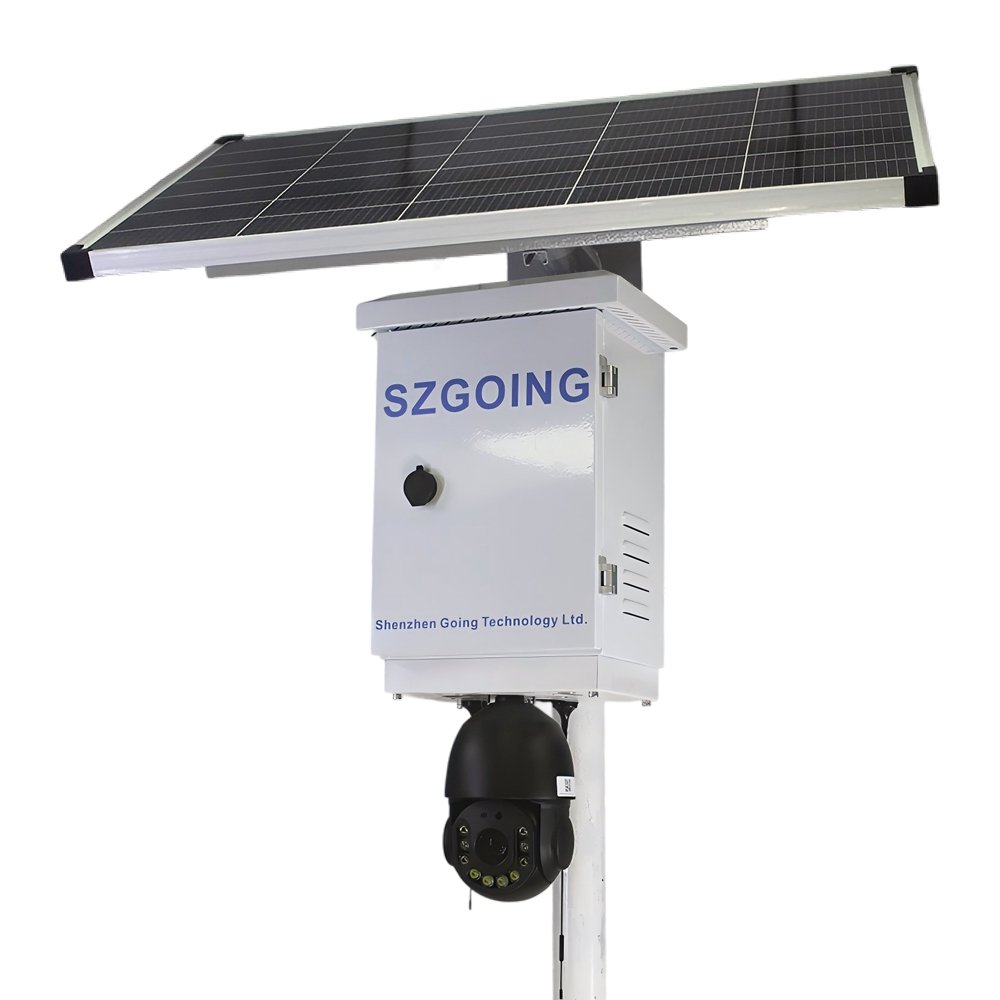

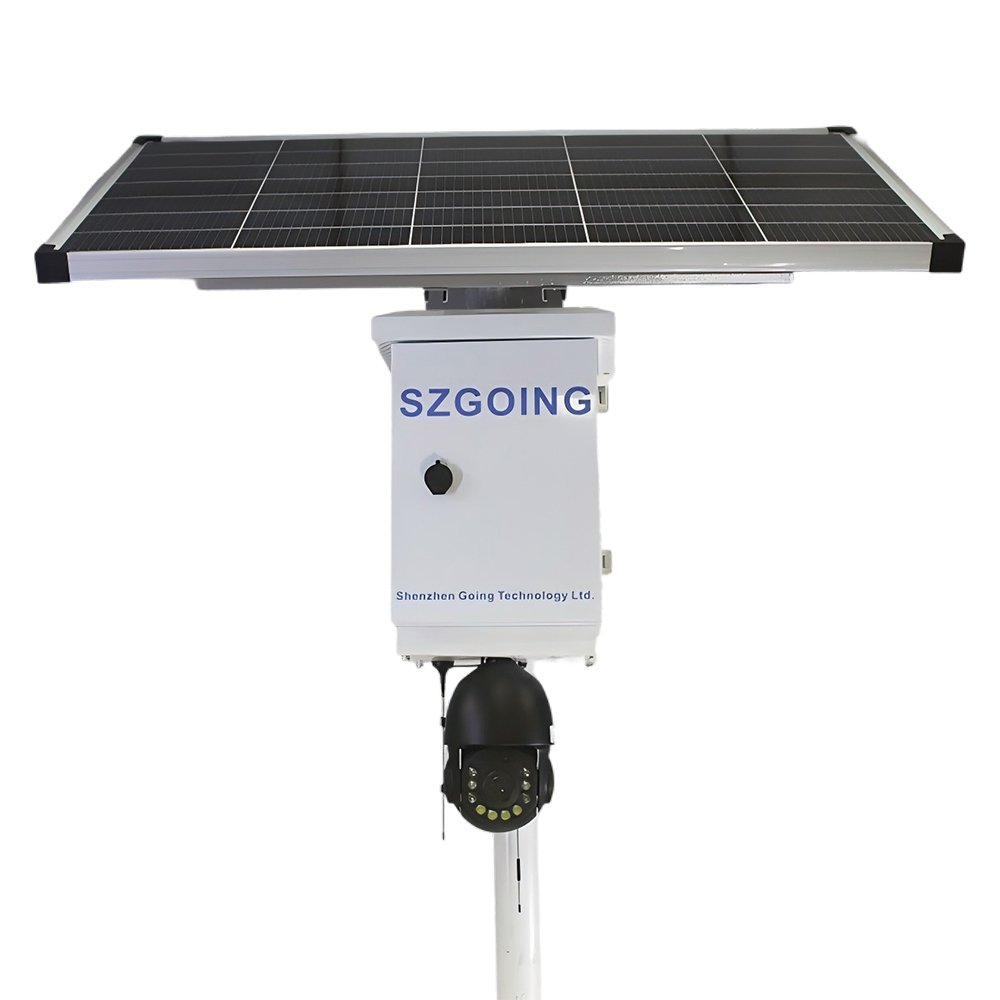

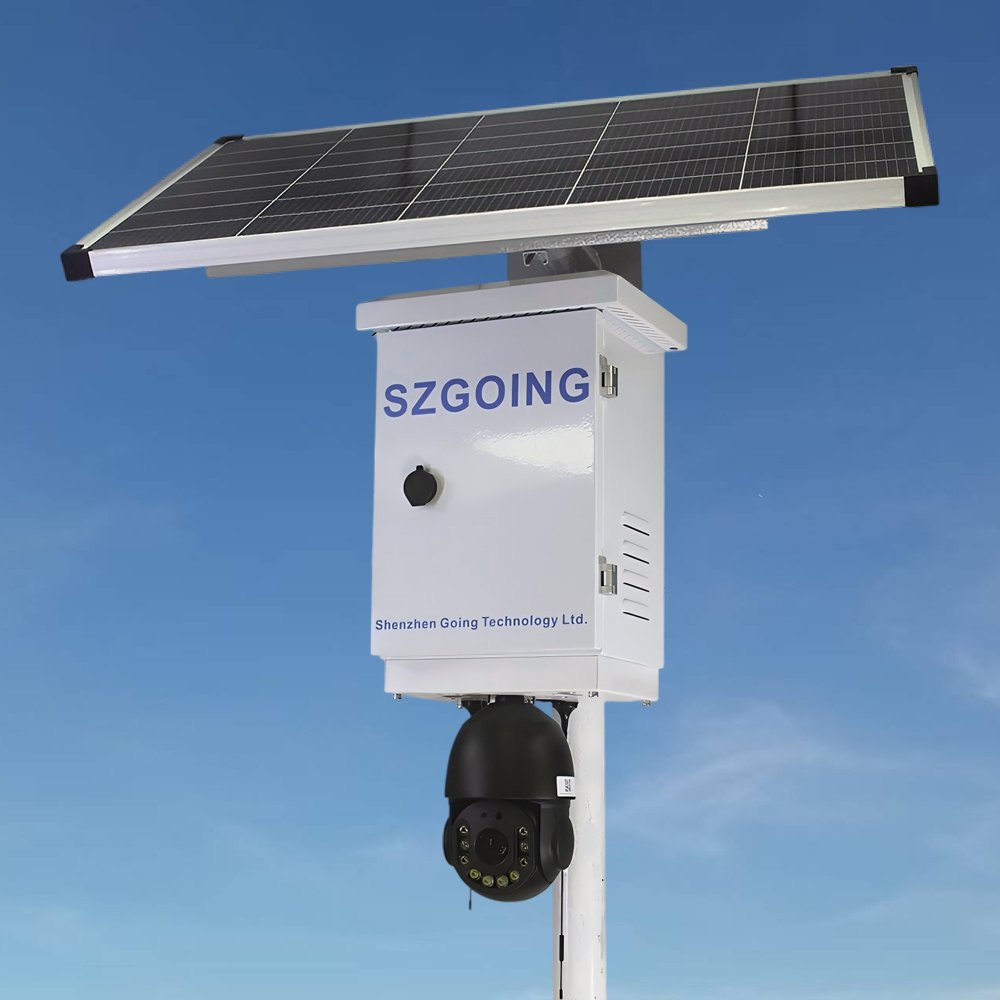

CS100 Solar-Powered Construction Site Camera

Model #CS100-CG4DP80M-128G:
Off-Grid 4G/WiFi AI Surveillance System with 30x Zoom

​Why This Solar Camera Dominates Construction Sites

1️⃣ ​100% Solar-Powered Operation

100W industrial-grade solar panel with ​aerospace-grade aluminum alloy bracket
IP66 Weatherproof box,Easy to install,Compatible with all type 12V battery.
Zero electricity costs – ideal for remote construction zones & temporary job sites

2️⃣ ​4G & WiFi Dual Connectivity

Built-in 4G modem with ​Nano SIM slot + 2.4GHz WiFi
Maintains connection in areas without fiber optics – perfect for rural farms & infrastructure projects

3️⃣ ​AI-Powered Security Features

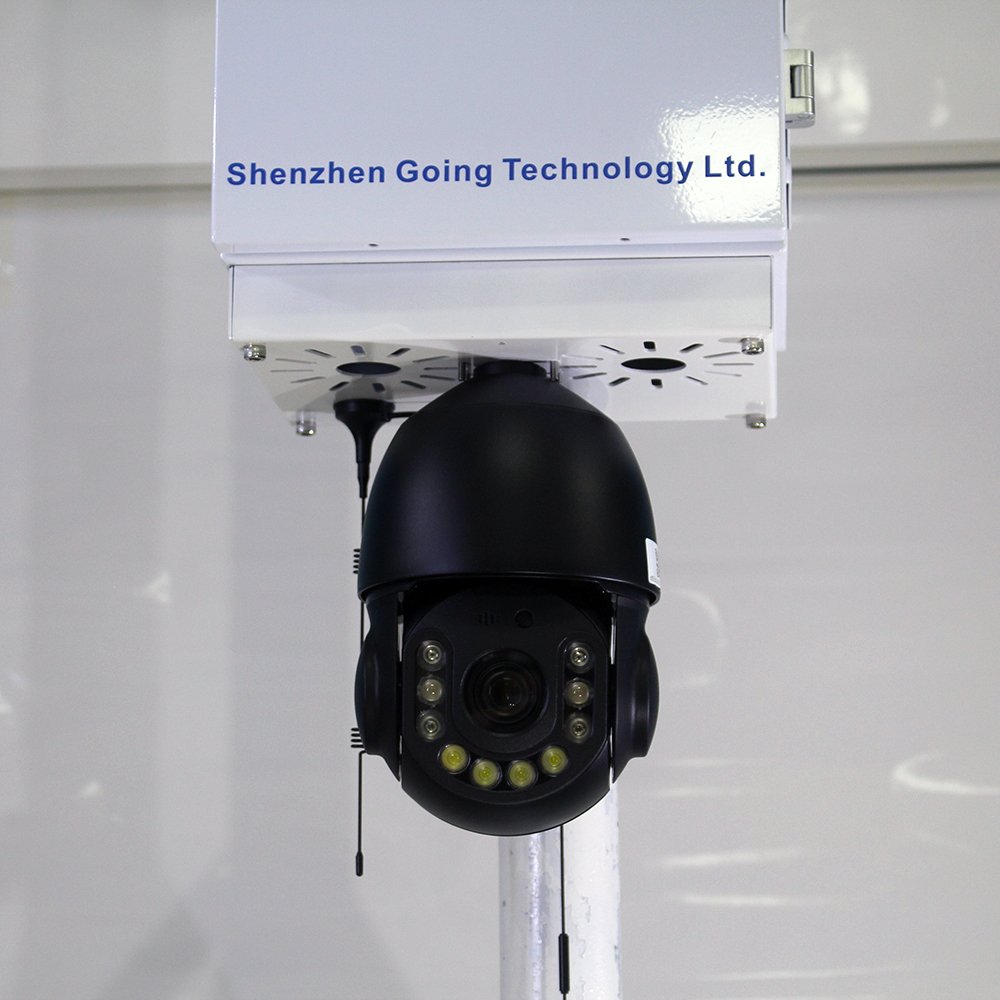

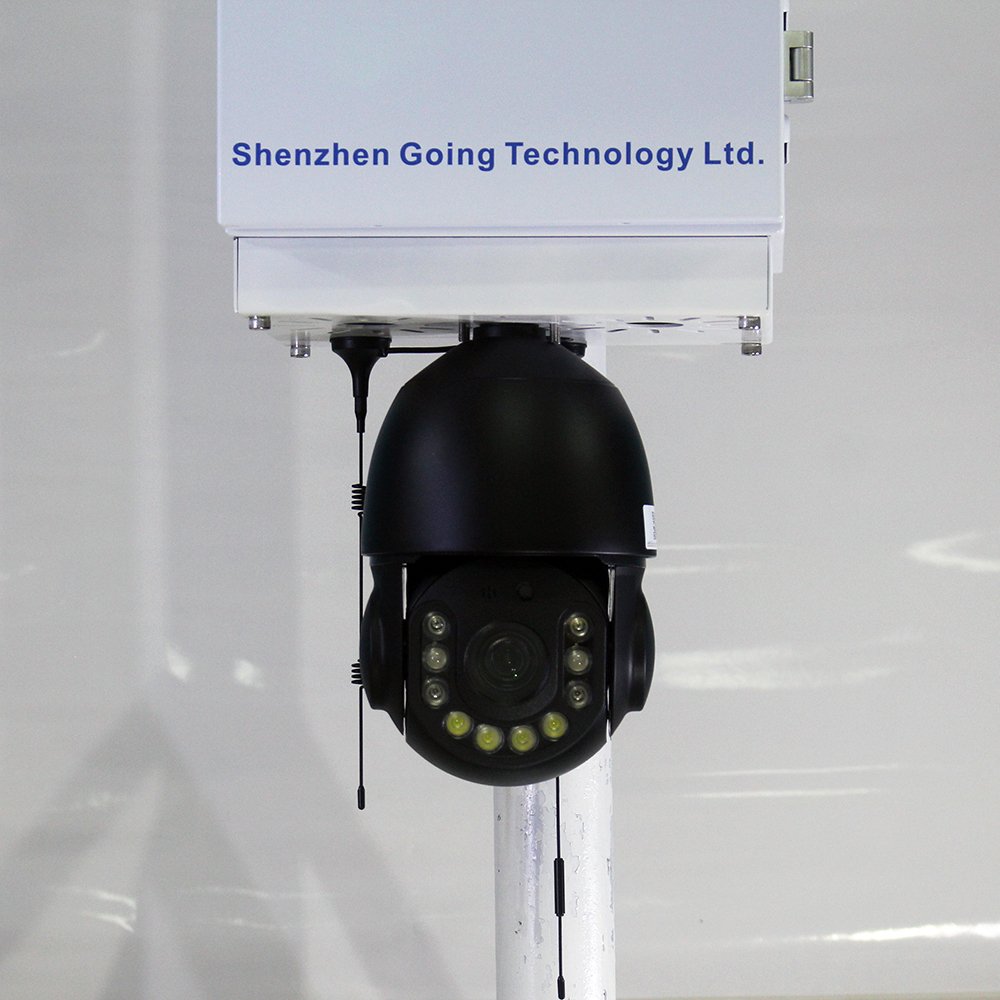

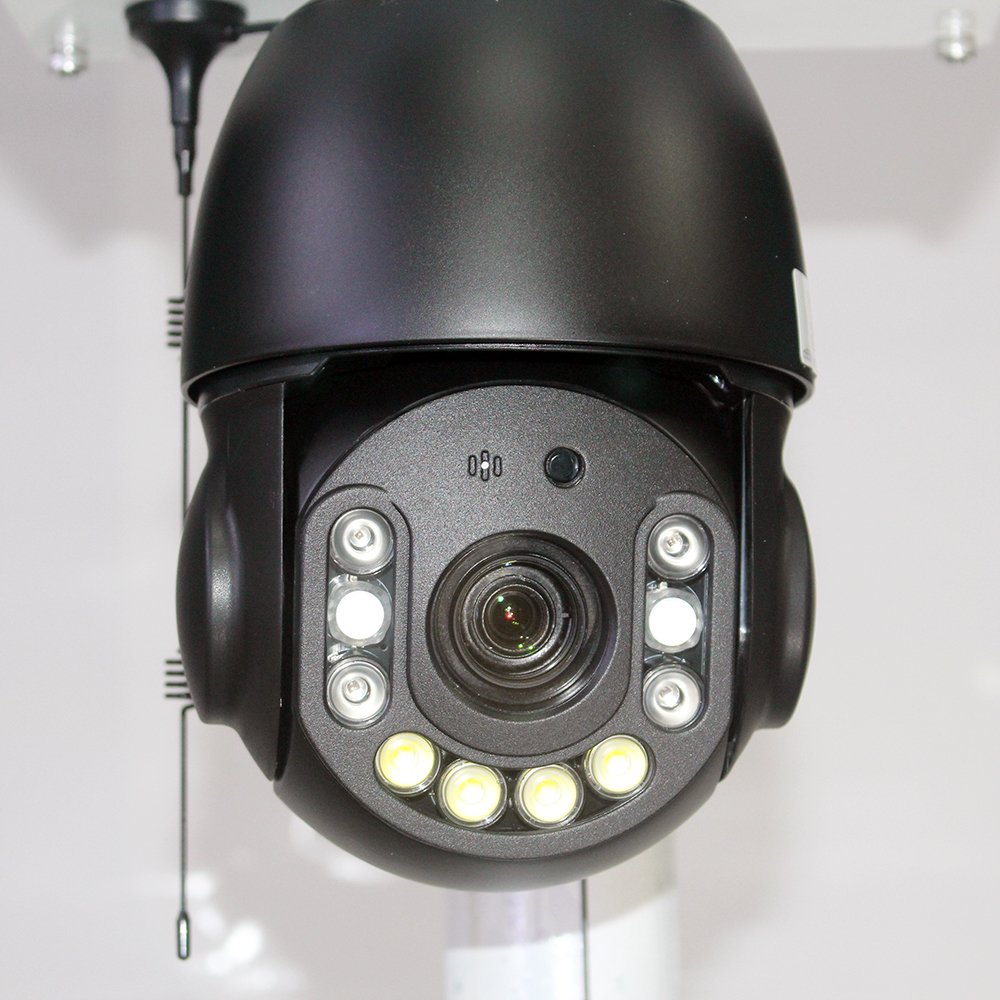

8MP Sony415 sensor with ​30x optical zoom (3.2-96mm) & 355° pan/tilt coverage

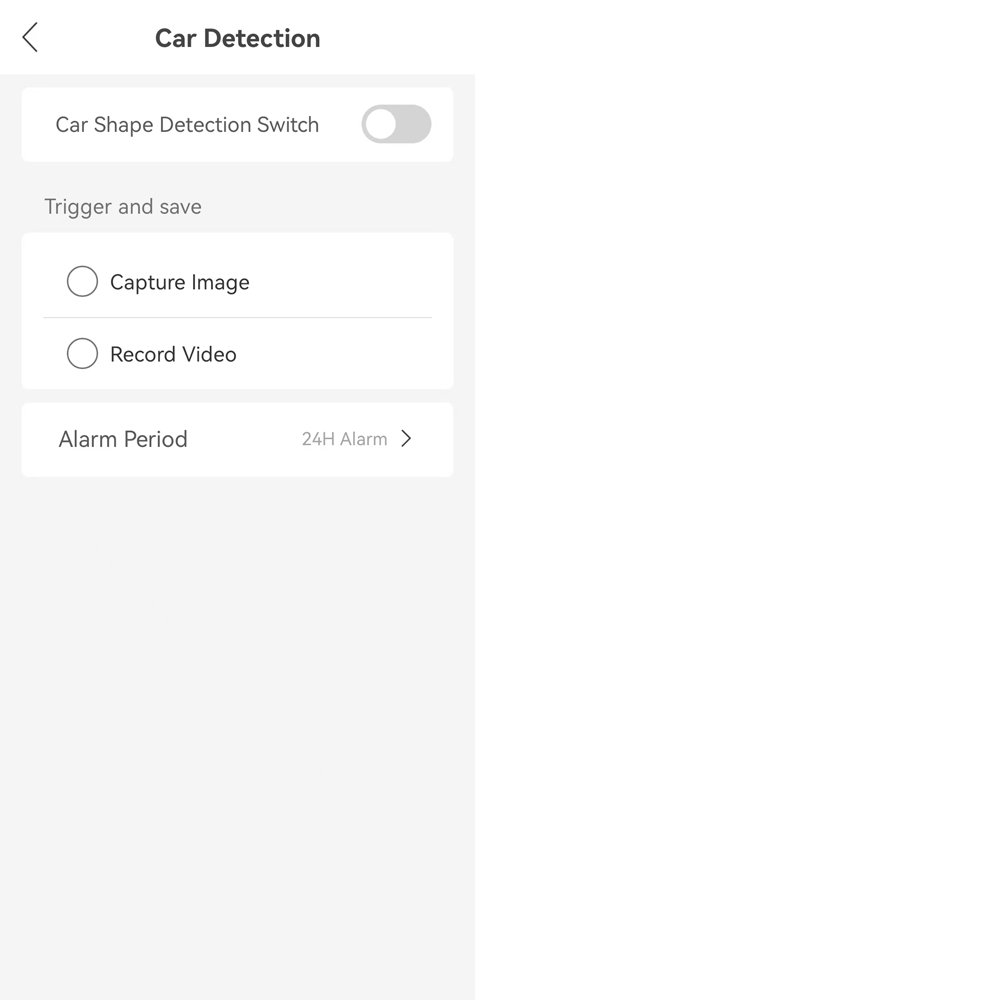

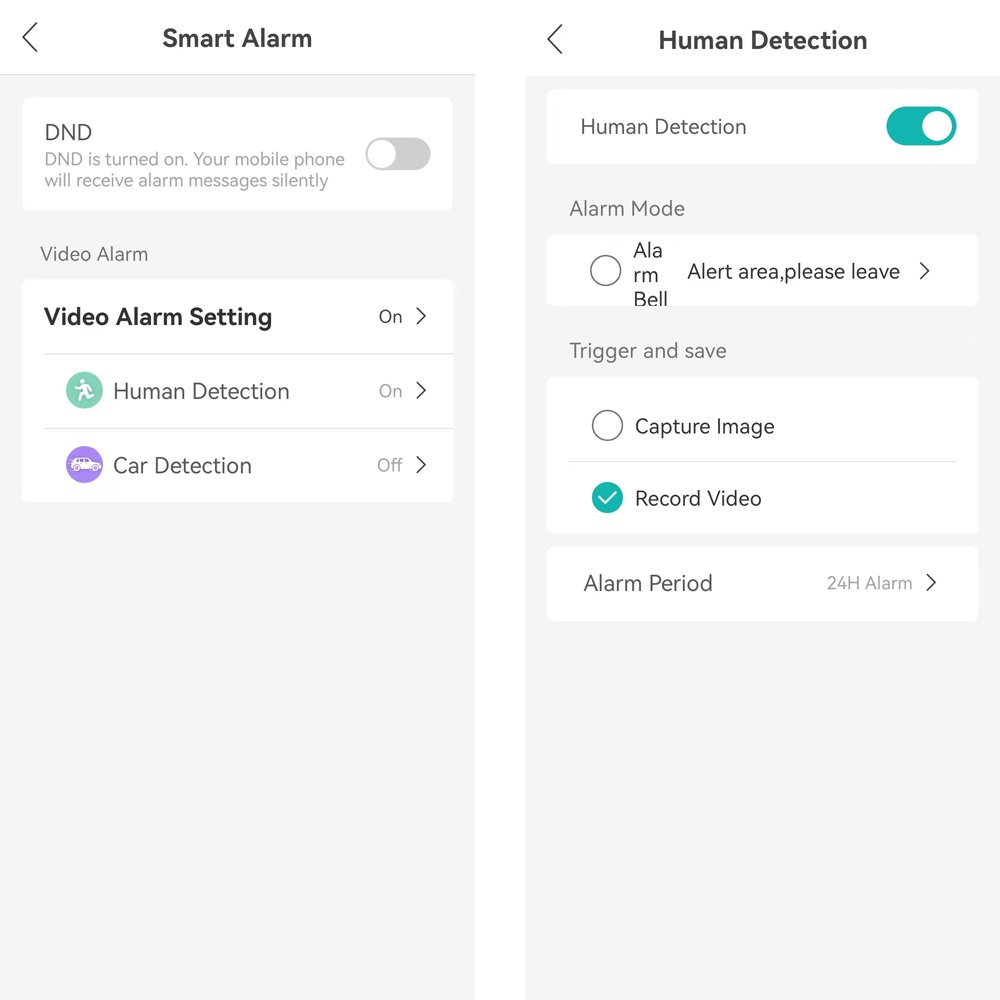

Humanoid tracking + customizable alarms (voice/light triggers) for theft prevention
Dual night vision modes: ​Full-color @50m / IR @100m – monitor 24/7 in pitch darkness

Video Demo

(The video has been converted and compressed, and the actual effect will be better)

​Technical Specifications
​Storage: 128GB local + cloud
​Networks: 802.11n/g/b WiFi | 4G/3G/GSM bands
​Durability: IP66 waterproof housing & military-grade weatherproof control box
​Control: iCsee/Xmeye Pro app | Web browser access | 64-channel VMS software

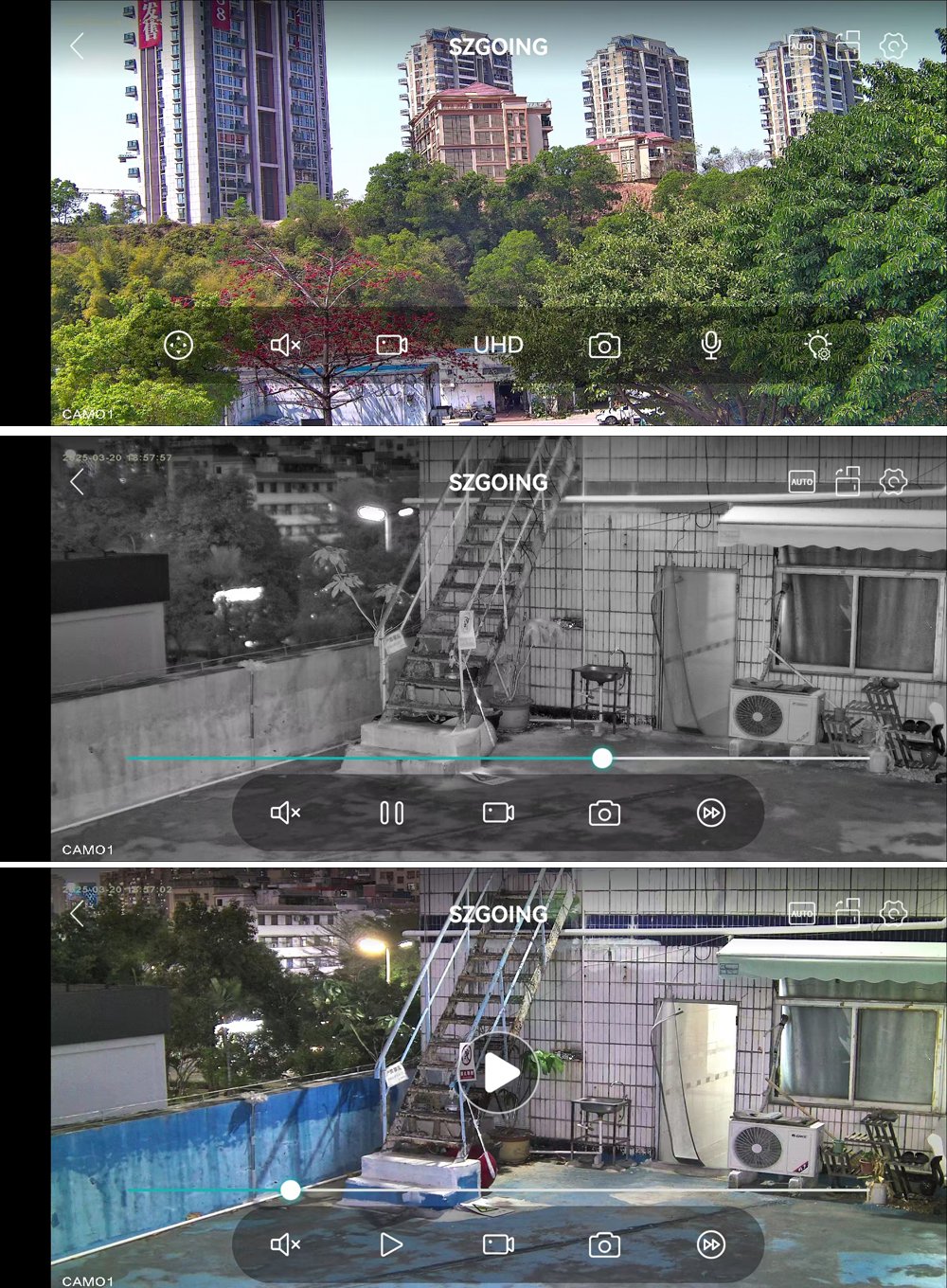

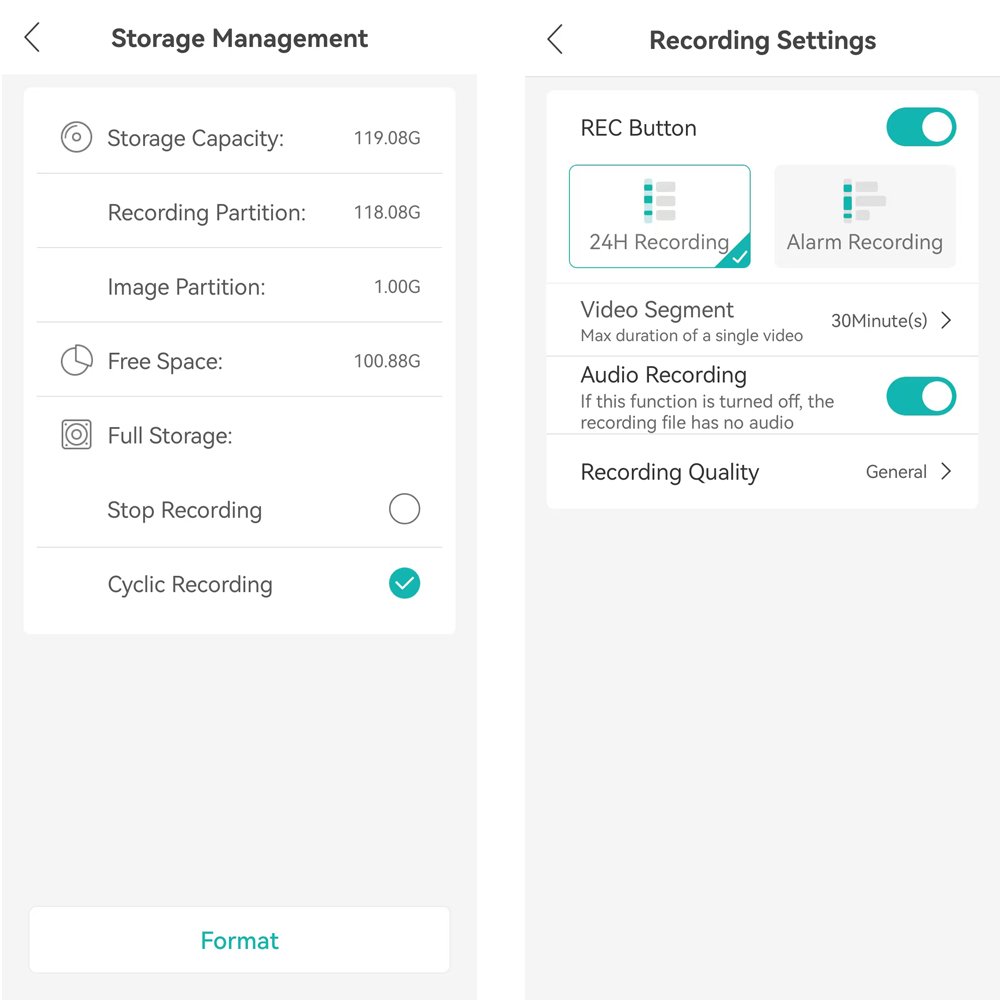

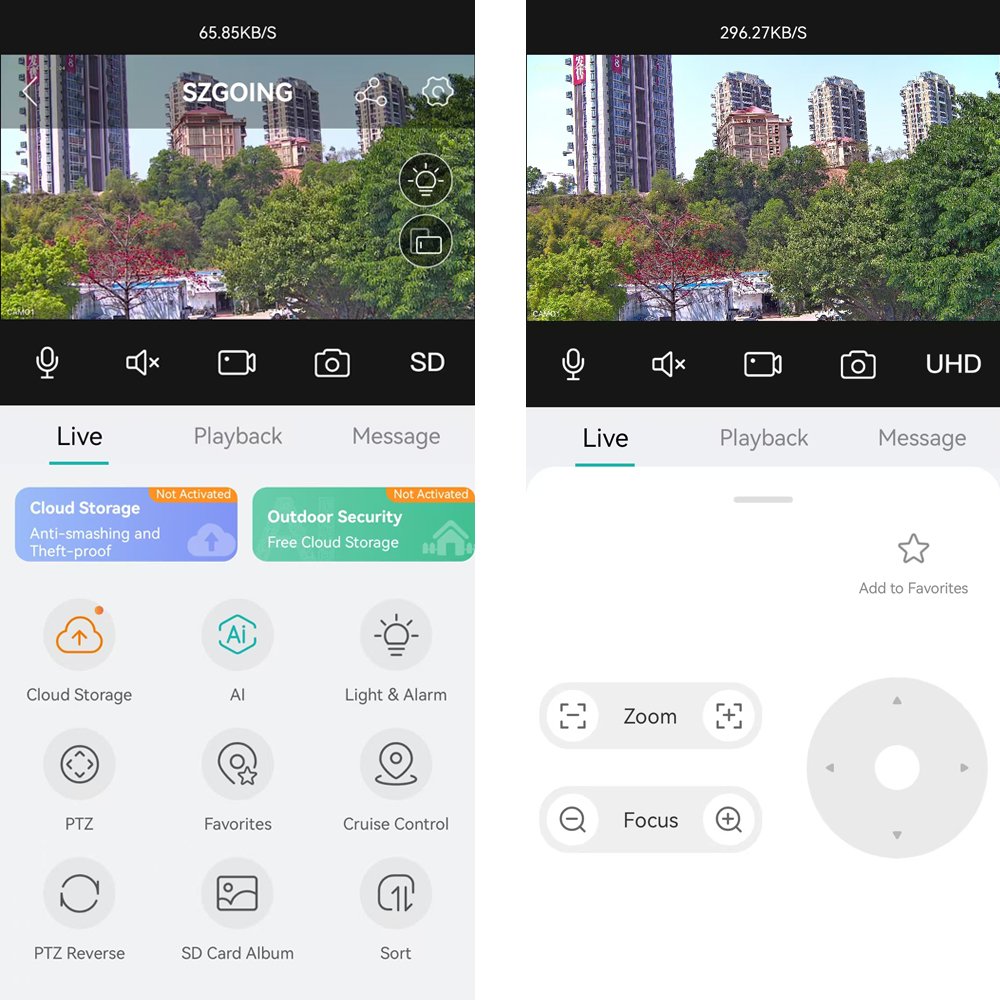

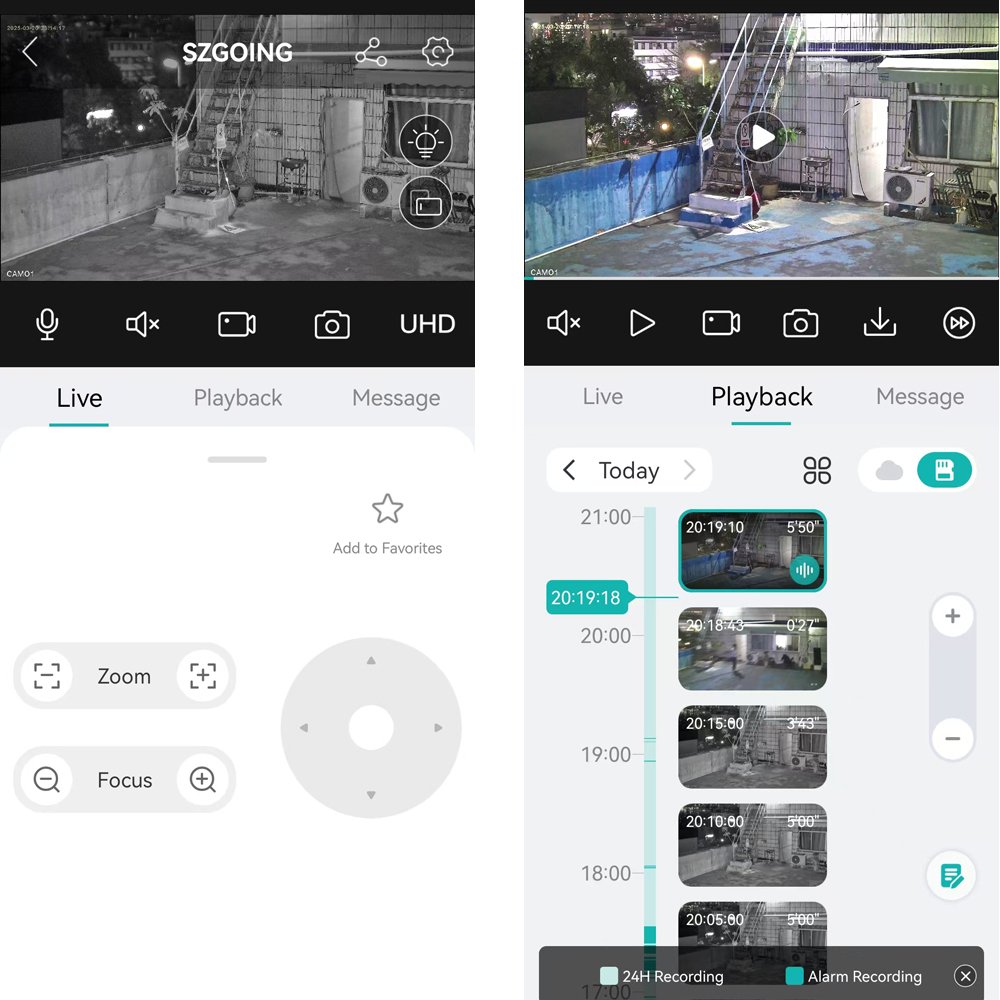

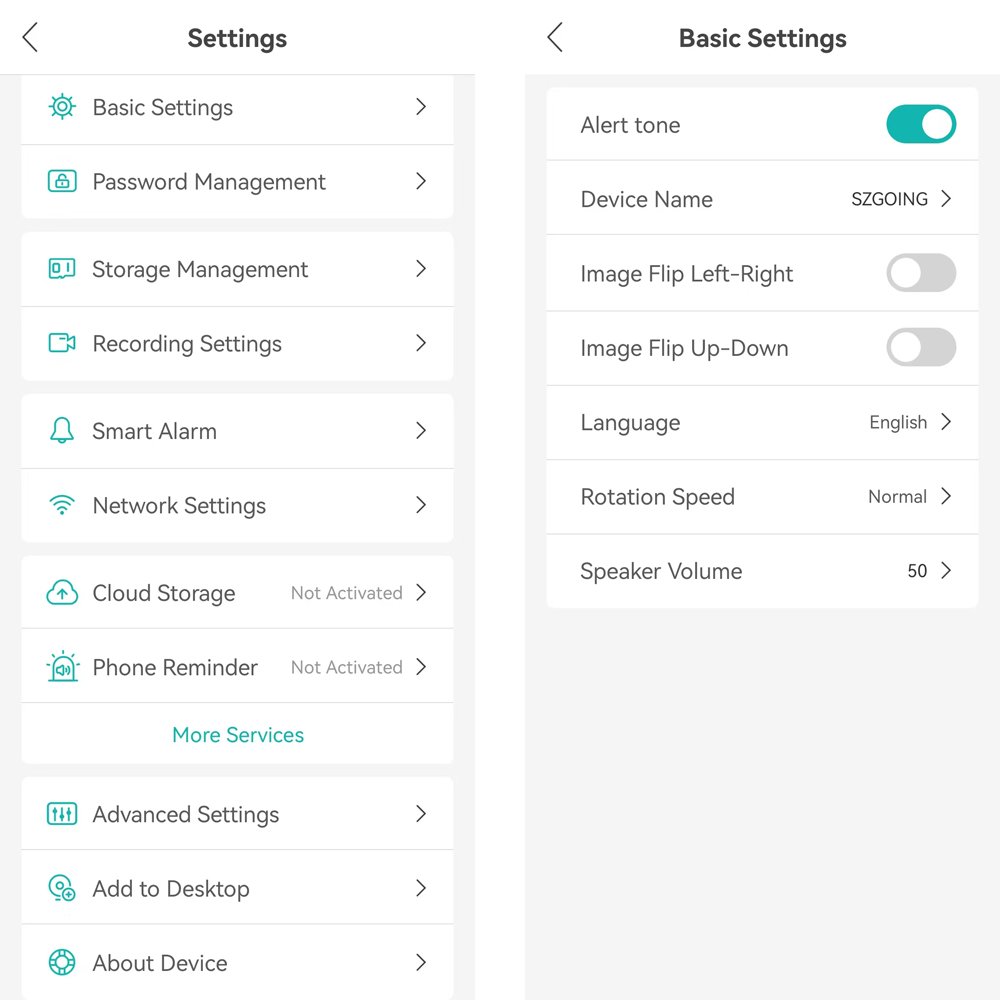

iCsee App

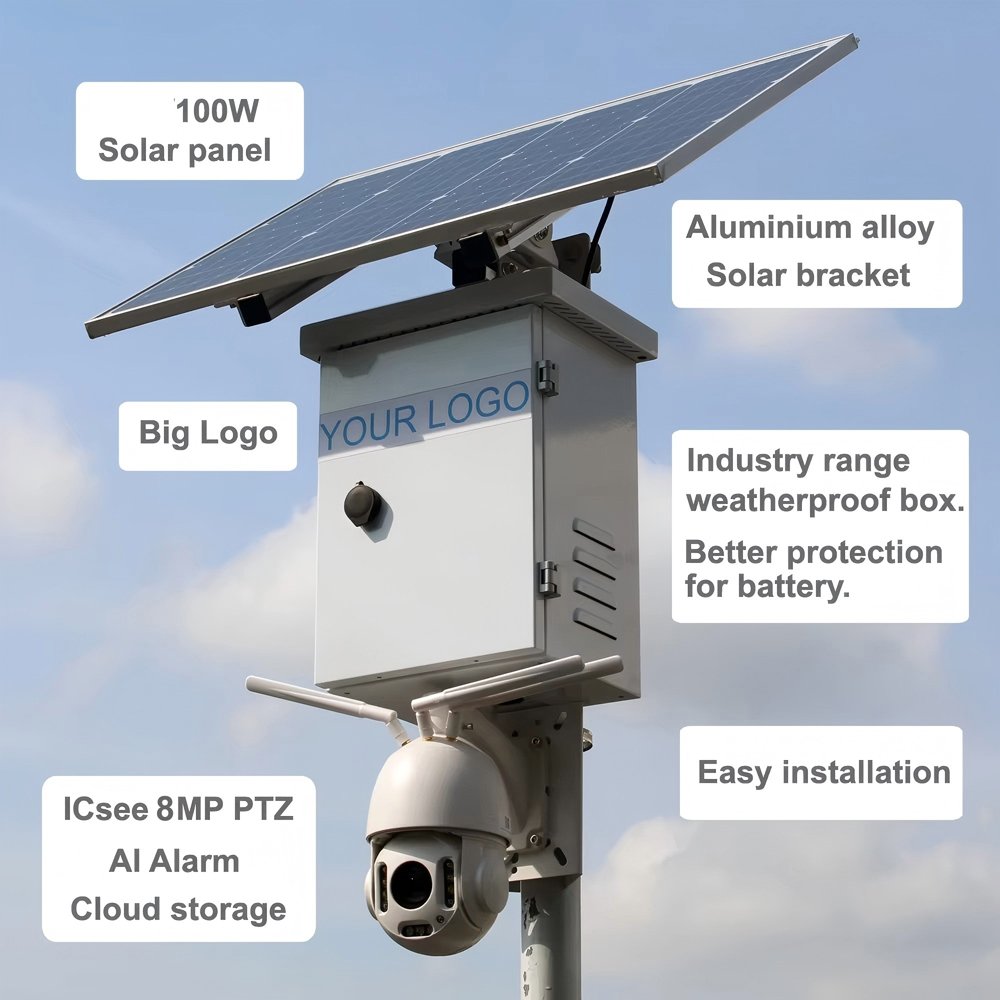

​Solar Construction Camera Package Includes

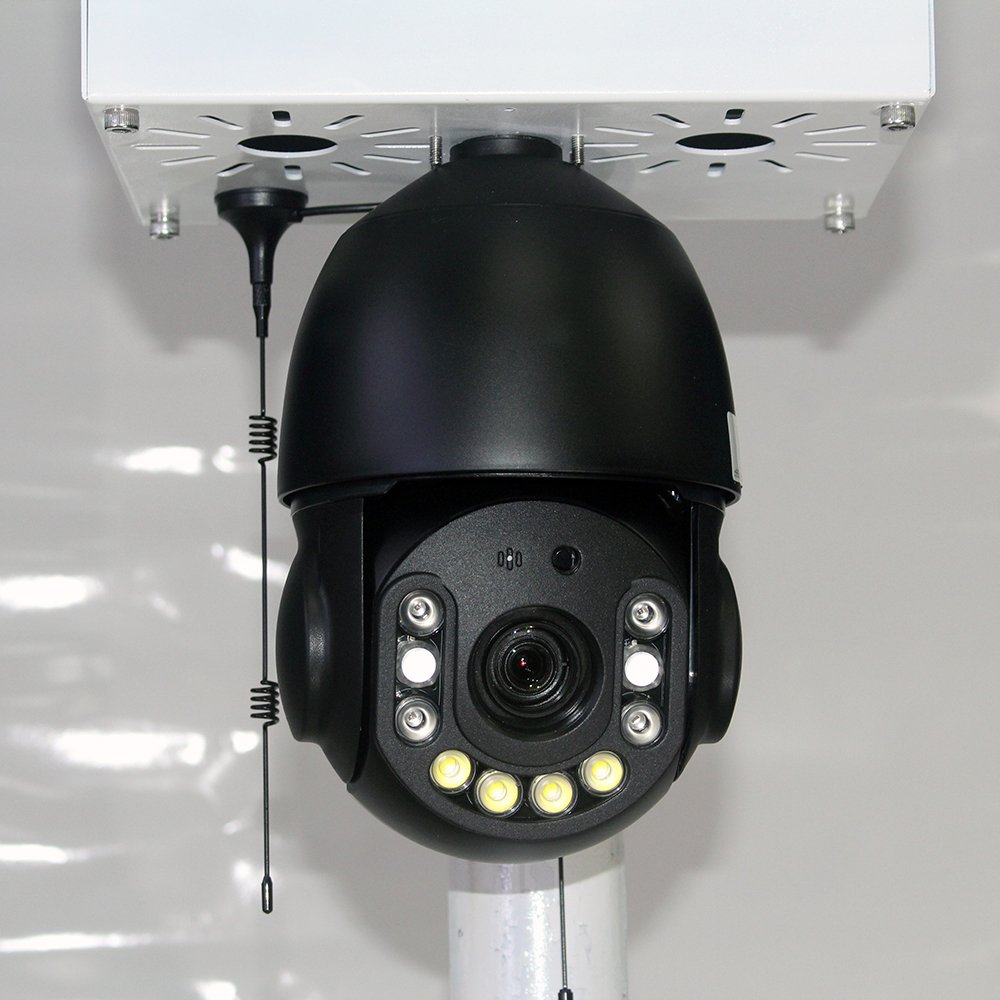

8MP PTZ Camera (128GB pre-installed)
100W Solar Panel & Anti-Corrosion Bracket
10A Smart Power Controller & Installation Toolkit
Pole Adapter for 2-6″ diameter mounts
Excluded: Support pole, battery (we recommend LifePO4 12.8V 40-50AH)



Shipping Method:

DDP: Sea+Local Express Door to Door Tax Include.

Shipping time:3~4 Weeks



Data Sim Card

We will put a data sim card to sim card slot for most countries,The system got internet ready.It has 100M free data for you to test the system,Lower Cost Data Plan.You can use your own sim card if you don’t like its data plan.



Solar Consturction Site Camera Data Sheet

Model	CS100-CG4-DP50M-128G
Compression	H.265+
Resolution	8MP
Lens	3.2-96mm, 30X zoom
Rotation Range	Pan:0º~355º , Tilt:0º~93º
Rotation Speed	45°/s
Preset Points	220pcs presets
Night vision	100 meters IR range
TF Card slot	Max 128G TF card support
WIFI 2.4G network	IEEE802.11b/g/n/
Camera Housing	Metal+Plastic, Outdoor weatherproof IP66
4G/3G/2GBand support (Nano size sim card slot)	Europe/Asia/Africa: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39) WCDPA:B1/B5/B8
Solar power system	Maximum Power(Pmax):100W Voltage at Pmax(Vmp):18V Current at Pmax(Imp):5.56A Open-Circuit Voltage(Voc):21.6V Short-Circuit Current(Isc):6.11A Size:950mm x 530mm x 30mm Weight:5.6kg Newest 16 lines solar panel
Battery box size	400x300x200mm
Power Control System	12V 10A
Battery	Support 12v Lead Acid battery,18650 Li battery,Lifepo4 battery and other type 12v battery
Solar bracket	Aluminium alloy
App	iCsee or Xmeye Pro
Client software	64CH VMS
Weight	29KGS/Kit
