SZGOING 5G Solar Trailer Camera Surveillance Wireless Mobile Security System
Demo Video

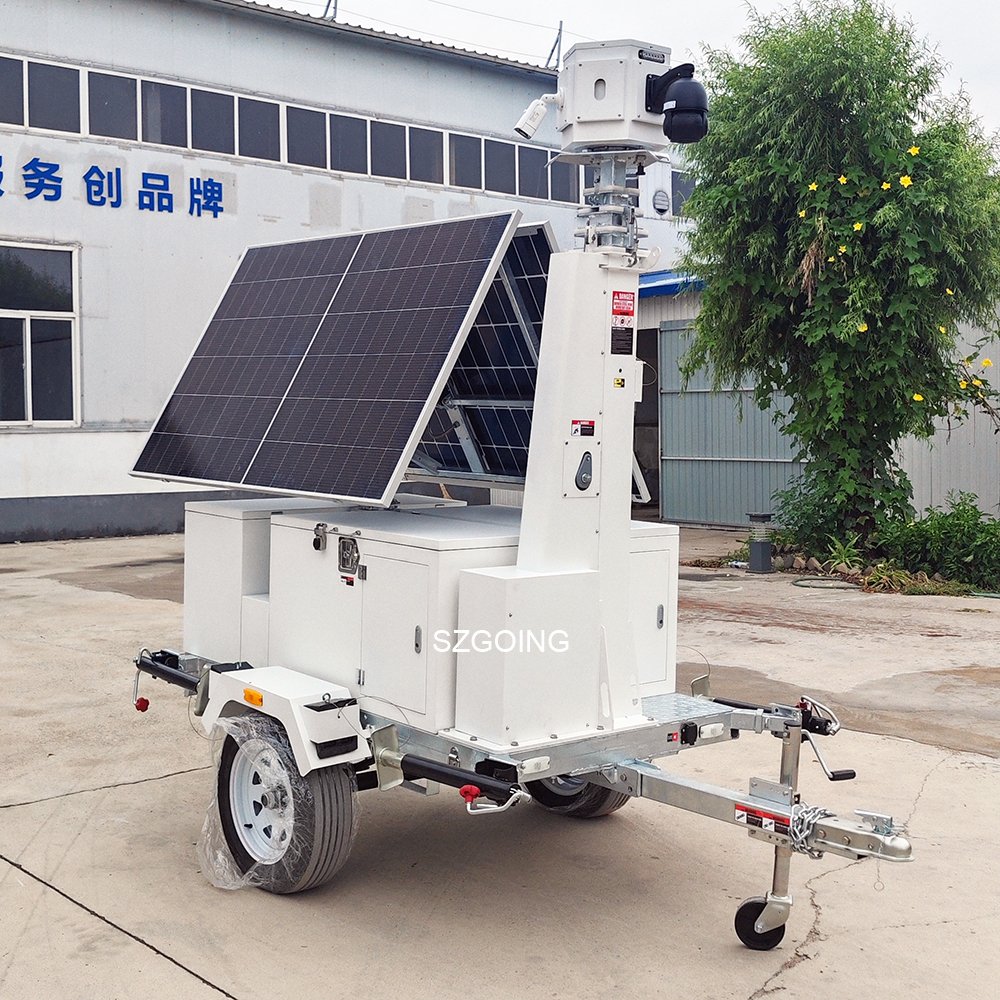

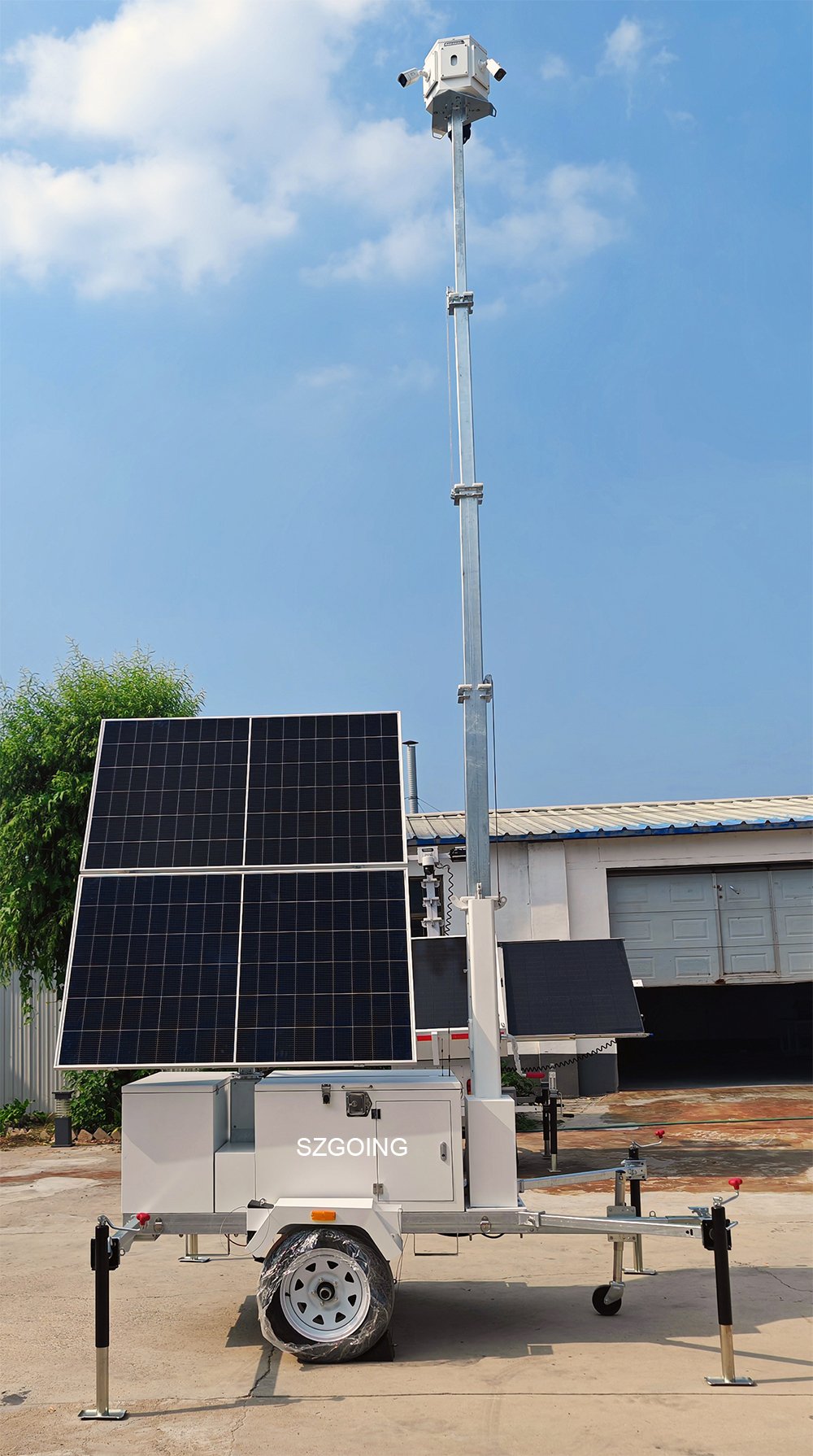

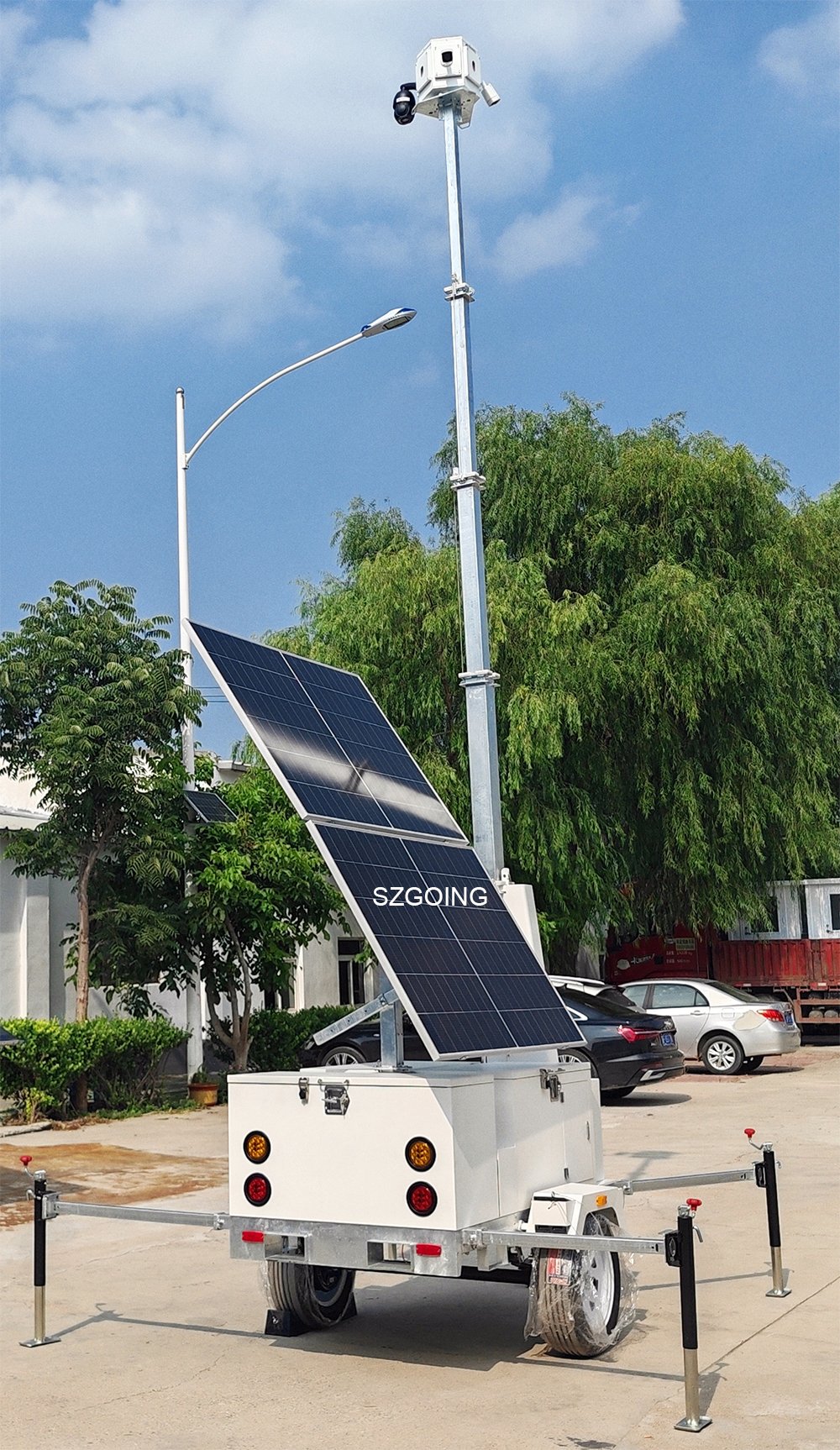

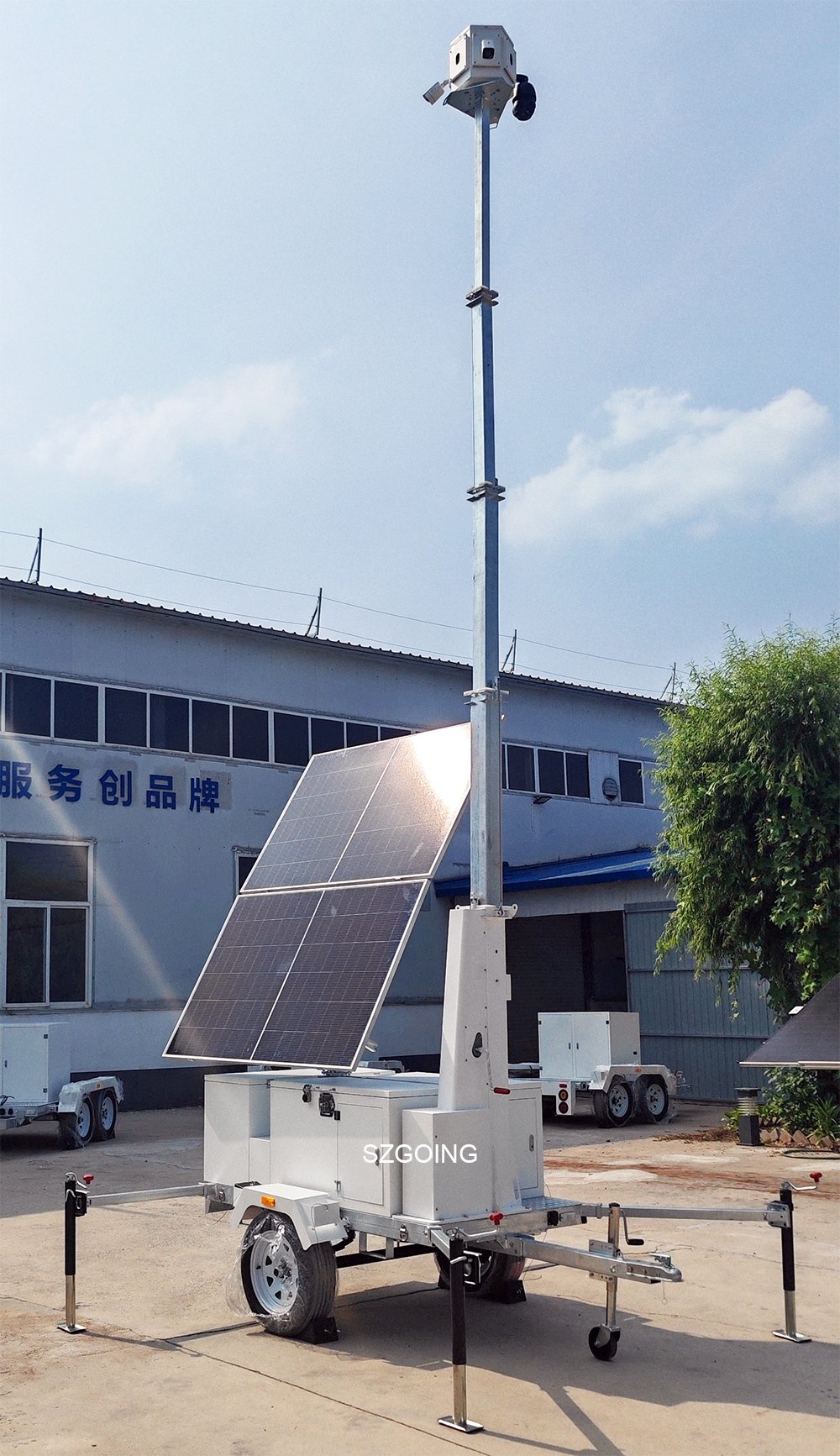

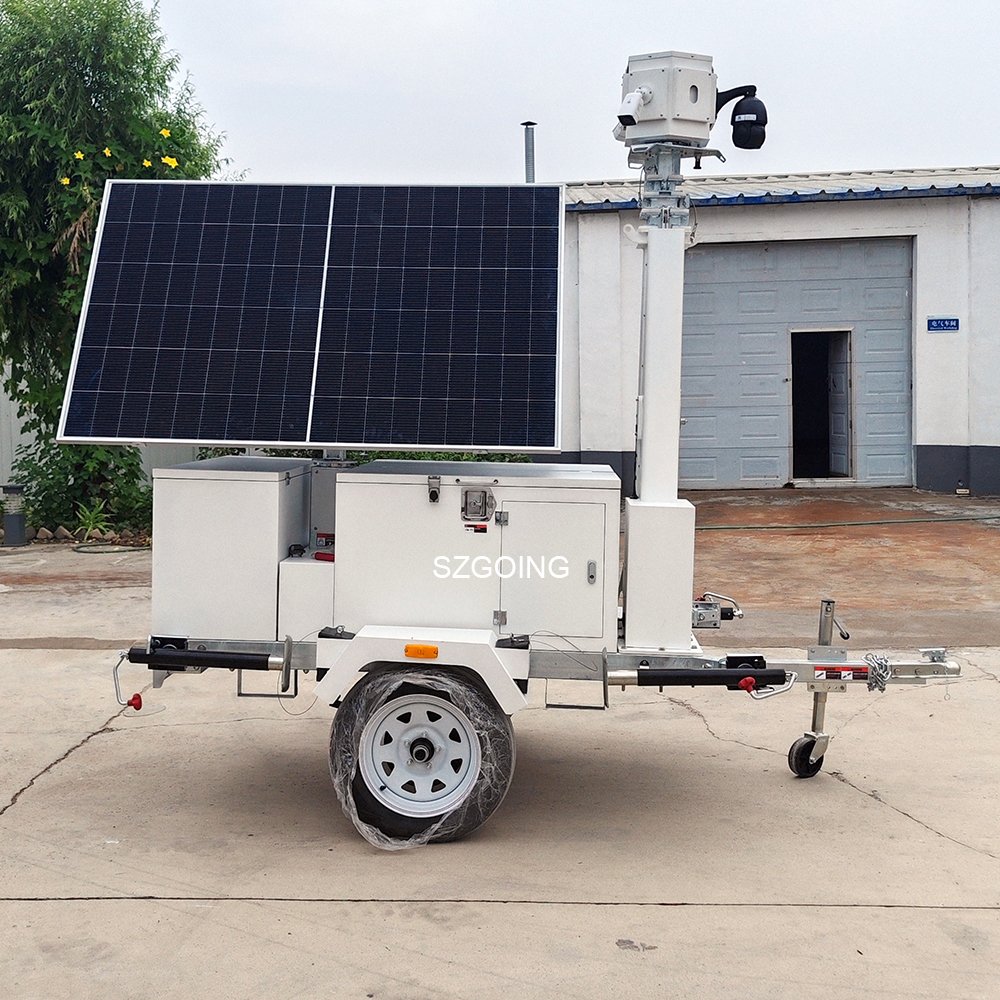

SZGOING 4G/5G 8MP Solar Camera Trailer
*890W Solar powered System
*7200Wh Battery capacity
*6 meters height mast
*4pcs Support legs
*Camera system is powered by solar trailer,It support 5G/4G network,Record the HD video to its inside hard disk,So it can work at any location,especially the construction side.
*It can be viewed remotely on mobile phone or PC.Use a mobile phone or a PC we can check the playback from its inside hard disk
remotely.
SZGOING Solar Camera Trailer Main Parameters:
1. 890W Solar Trailer,7200WH Battery.
2. 6 meters height mast,4pcs Support legs
3. Camera system:4pcs SONY4158MP 30X Optical Zoom PTZ Camera or 1pcs 8MP 30X Zoom PTZ+4pcs Bullet cameras are optional
4. HIK VISION 2048GB SSD NVR System,2048GB SSD inside,Faster access,No need cloud storage fees.
5. Support 5G/4G and WiFi network
6. Built-in Red Blue Alarm light
7. Cloud connection P2P,Easy to view on mobile phone/PC
8.App:Hik-Connect
9.Free VMS PC Client software.
APP: Hik-Connect
View on Hik-Connect App
Playback on Hik-Connect app
Different playback Speed is optional
Download Recorded File on Hik-Connect app
Solar Camera Trailer Data Sheet
|
Camera System
|
A3-2T–2FL-HIK
|
|
Compression
|
H.265+
|
|
Video Resolution
|
8MP
|
|
Supported Protocols
|
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP
|
|
System Interface
|
10M/100M self-adapting Ethernet port
|
|
5G/4G
|
12DBI 4G/3G/2G antenna
Europe/Asia/Africal: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39) WCDPA:B1/B5/B8 |
|
WiFi network
|
802.11N/G/B,2.4G
|
|
Alarm output
|
Alarm light x2pcs
|
|
Remote access way
|
P2P, Only need camera series ID and password,No need set DDNS
|
|
Memory
|
2048GB Hard disk
|
|
Record mode
|
manual>alarm>motion detection>timing,By local HDD
|
|
Camera system
|
1pcs 8MP PTZ+3pcs 8MP bullet IR camera
|
|
Camera lens
|
PTZ:3.2-96mm 30X optical zoom,Bullet:2.8mm lens
|
|
IR Range
|
PTZ 100M,Bullet 25M IR night vision
|
|
Server box size
|
400x250x500mm
|
|
OS for CMS
|
Microsoft Windows XP/2003/Vista/win7/win8/win10
|
Solar Camera Trailer
|
Model #:
|
GT70480M
|
|
Camera System
|
|
|
Camera quantity
|
1pcs 8MP 30X Zoom PTZ+3pcs 8MP Bullet Camera
|
|
NVR
|
2T SSD NVR System
|
|
photovoltaic
|
|
|
PV type
|
Single crystal silicon
|
|
PV model
|
2*445W
|
|
PV power
|
890W
|
|
Highest efficiency
|
≥21.5%
|
|
Battery
|
|
|
Battery type
|
Gel batteries
|
|
Battery model
|
4*12V/150AH
|
|
Battery capacity
|
7200Wh
|
|
Battery efficiency
|
≥80%
|
|
Controller
|
|
|
Controller type
|
MPPT
|
|
Controller model
|
24V/40A
|
|
Control mode
|
Manual/Automatic control
|
|
MPPT tracking efficiency
|
≥99%
|
|
Mast
|
|
|
Mast type
|
Hand crank
|
|
Mast height
|
6m
|
|
Maximum load
|
40KG
|
|
Wind resistance rating
|
Level 8
|
|
Trailer
|
|
|
Number of axes
|
Single-axis
|
|
Tyre
|
15 inches
|
|
Support legs
|
4pcs/manual
|
|
Tow hook
|
50mm ball/70mm ring
|
|
Basic parameters
|
|
|
Operating temperature
|
-35℃-60℃
|
|
Charging time
|
6.5h
|
|
Running time
|
3Days
|
