100W off-grid solar power and network base for security cameras

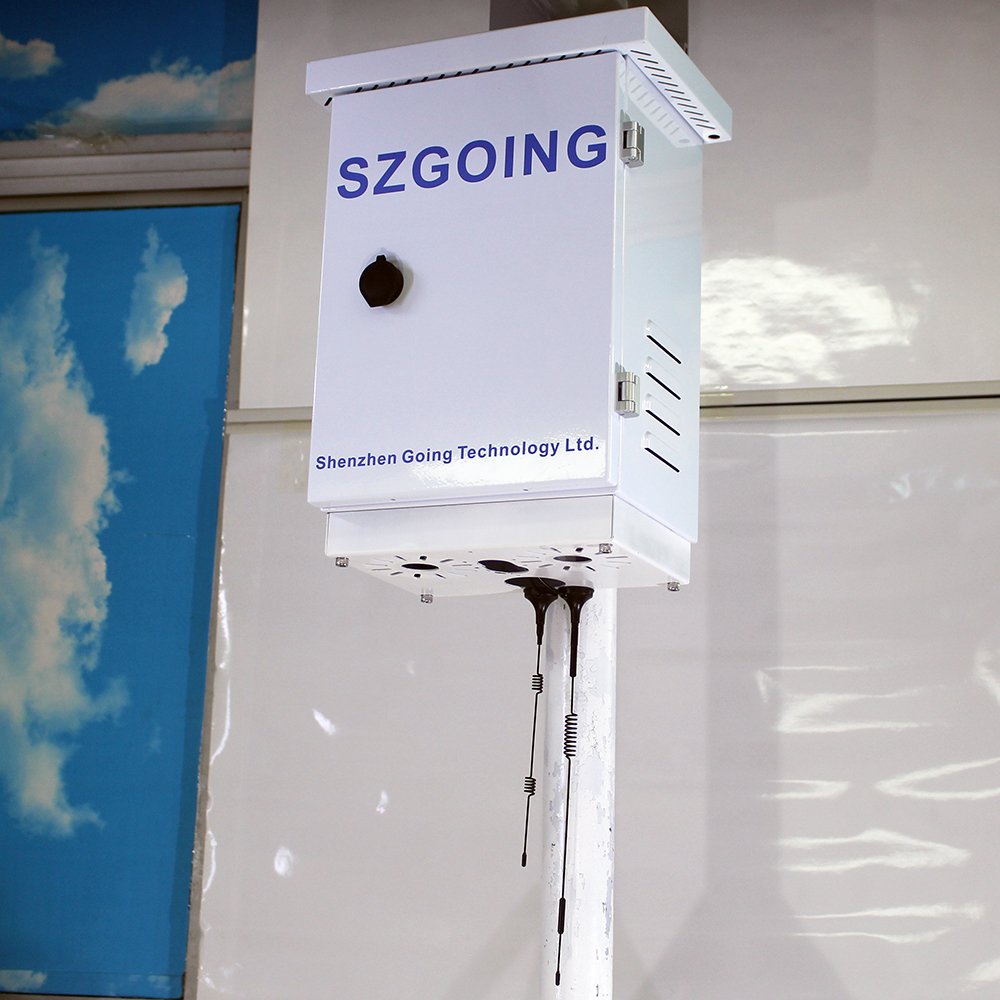

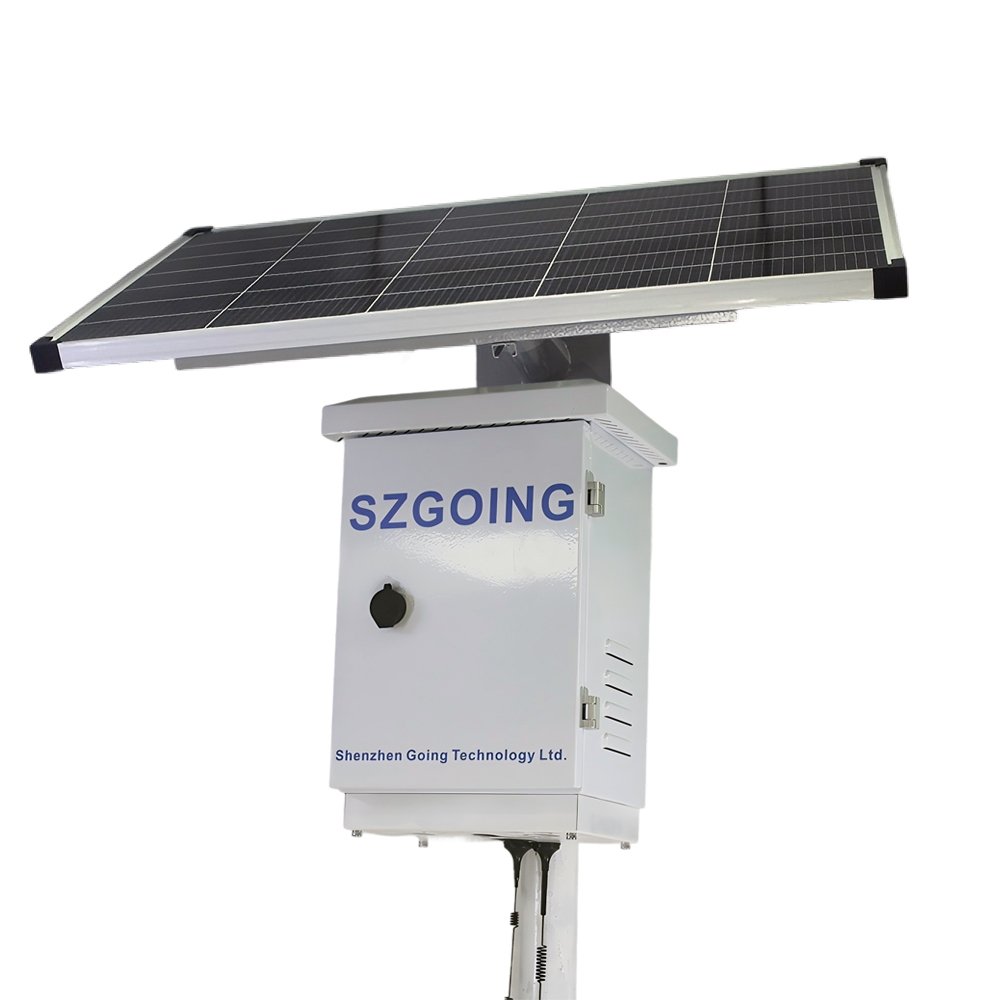

The SZGOING CS100-G432 (model CS100-G432) is a complete solar power and network platform for outdoor cameras in places without mains electricity or fixed internet. It combines a 100W solar panel, aluminium mounting bracket, IP66 equipment box, 4G/WiFi router, two RJ45 ports and a 12V 20A power control system. It can support two dome or bullet cameras, or one PTZ camera, installed directly on the equipment box.
Cameras, battery and mounting pole are not included. Choose the cameras for your application and add a compatible 12V battery before commissioning.
Key features
- 100W solar power: solar panel with aluminium alloy mounting bracket for off-grid installations.

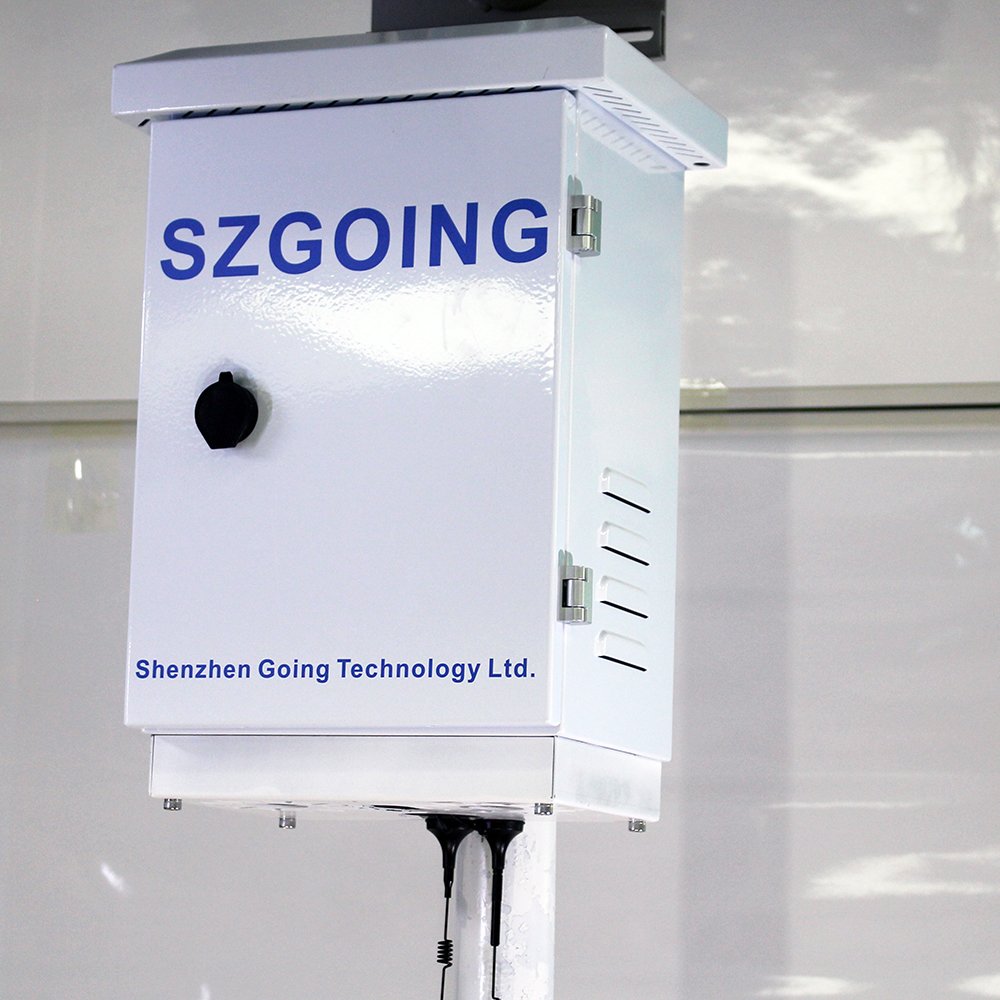

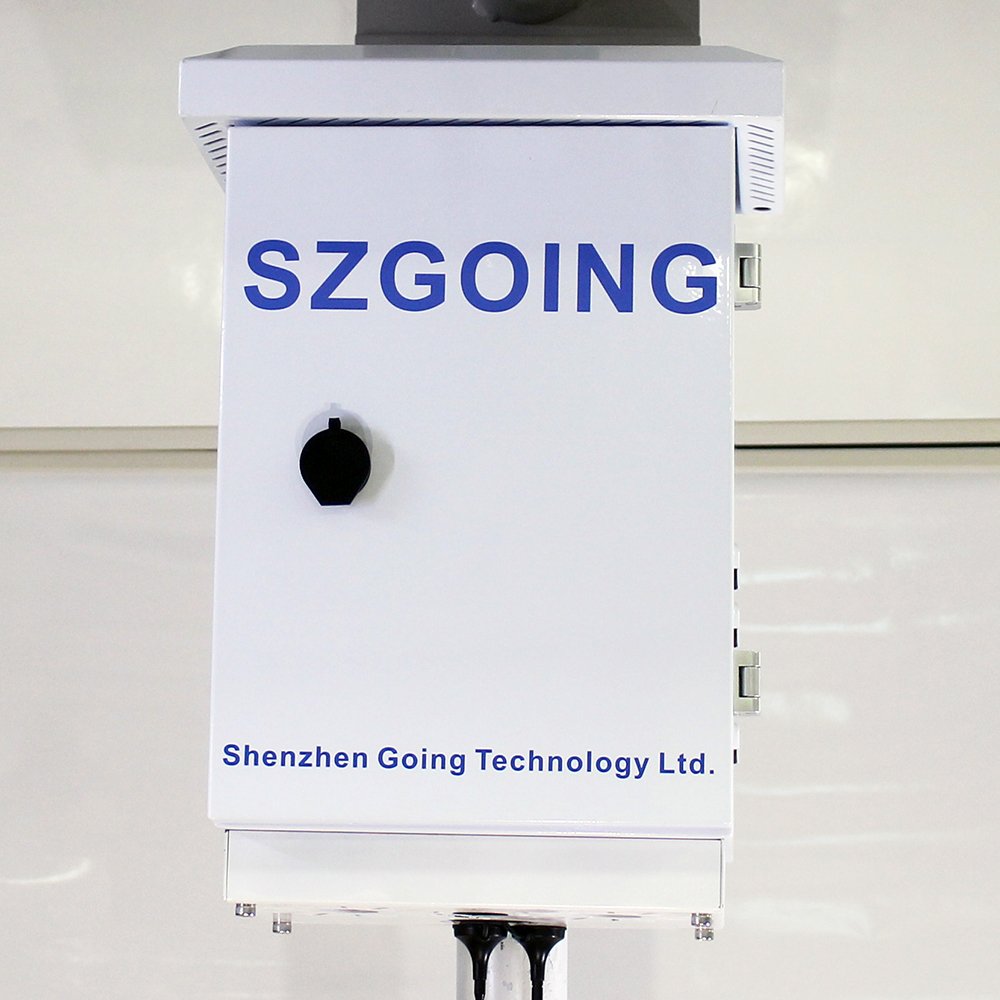

- IP66 equipment box: 400 × 300 × 200mm enclosure for cameras, the router and power equipment in exposed outdoor locations.

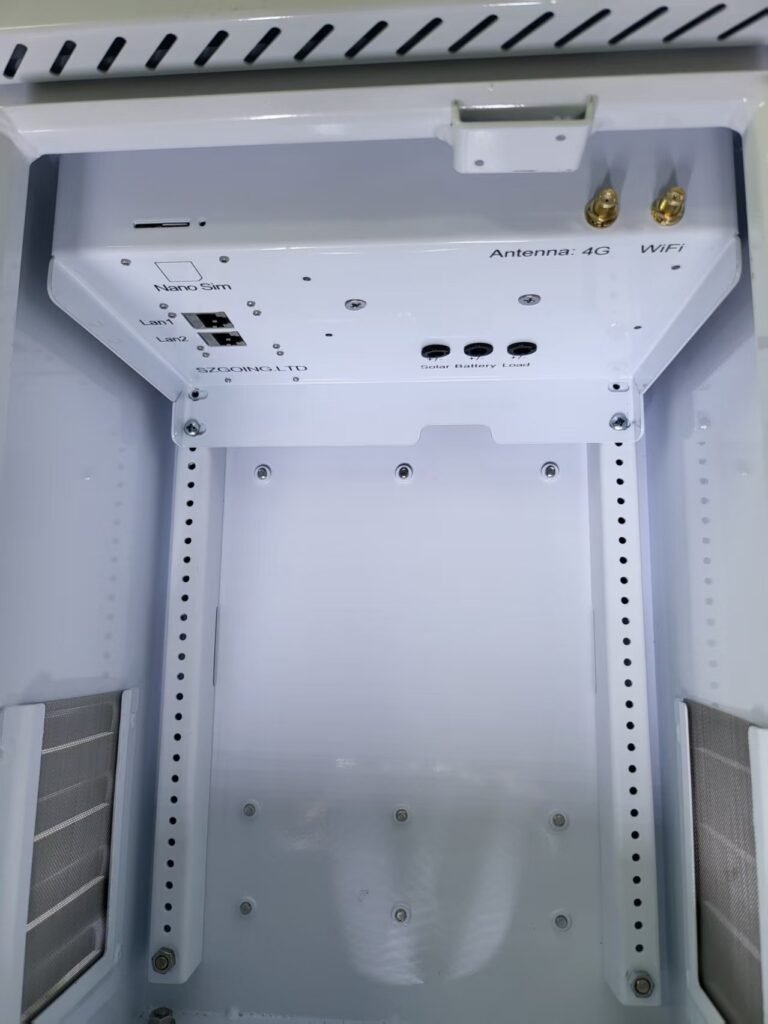

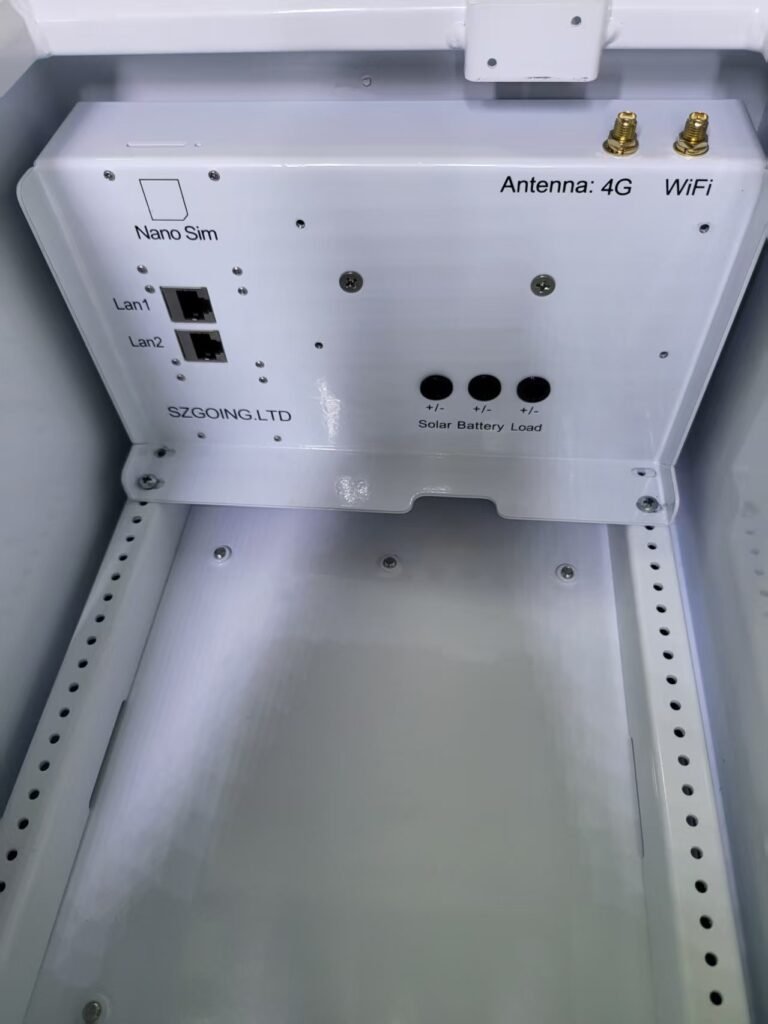

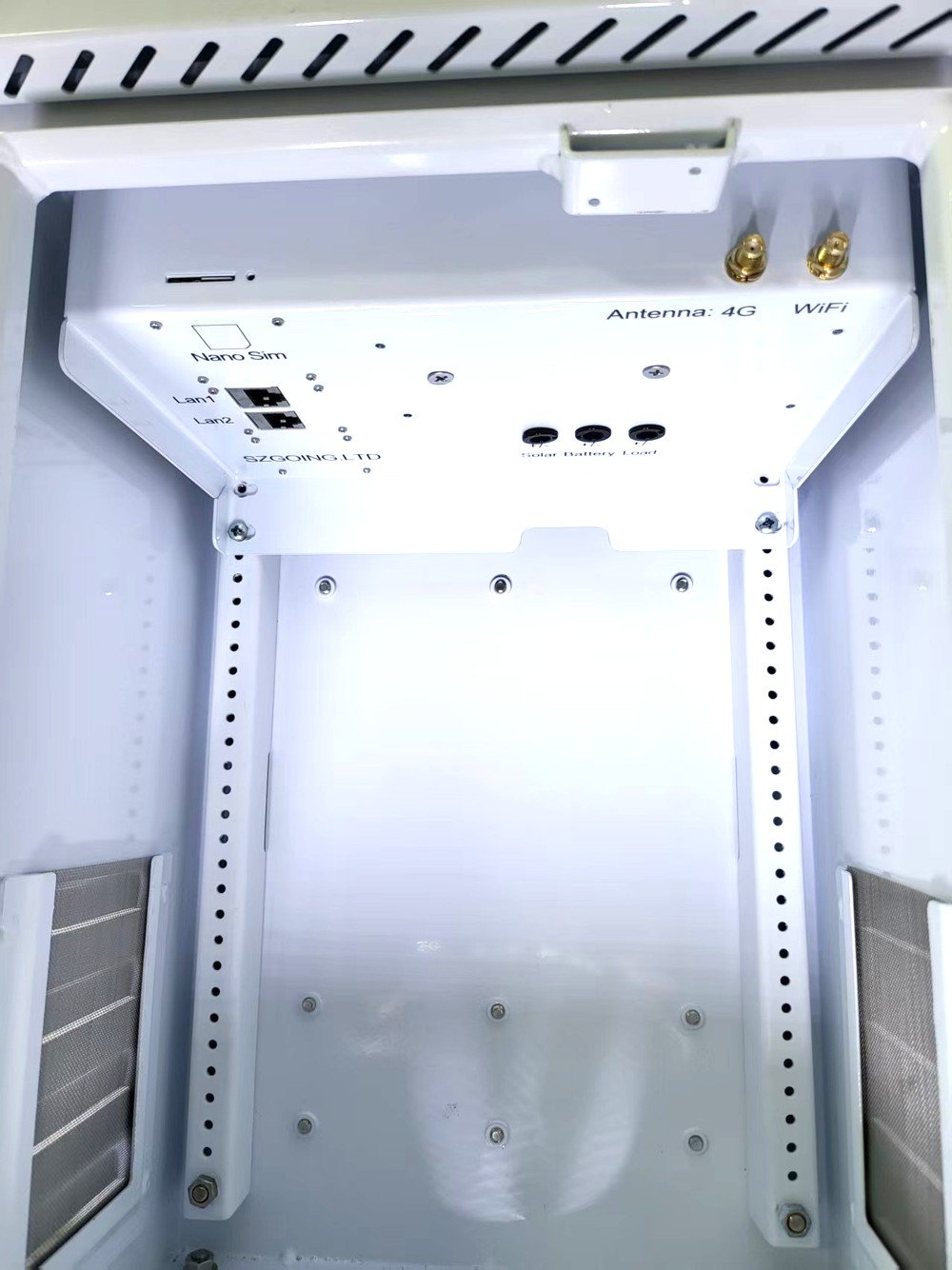

- 4G, WiFi and wired networking: one 4G Nano-SIM slot, 2.4GHz WiFi and two RJ45 LAN ports can provide connectivity to attached equipment.

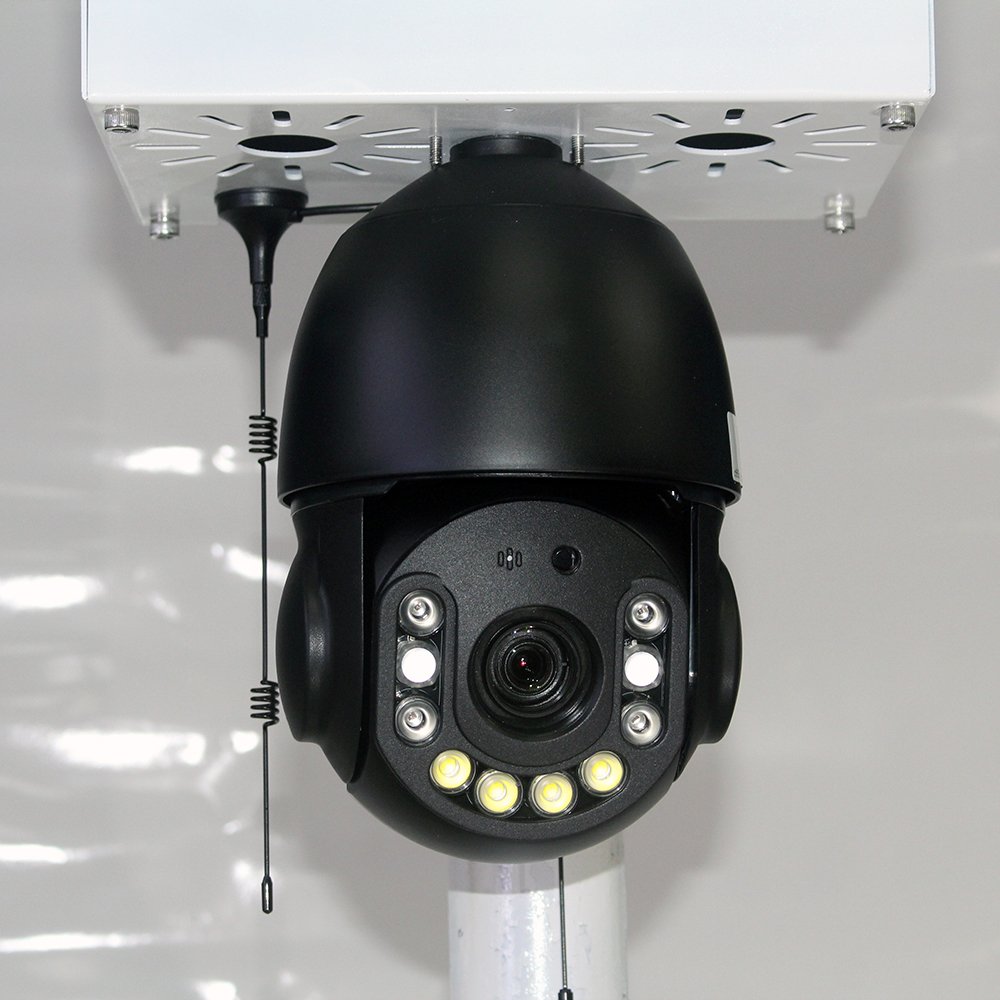

- Flexible camera capacity: supports two dome or bullet cameras, or one PTZ camera, directly on the enclosure.
- 12V control system: 12V 20A power controller supports several 12V battery types; a LiFePO4 12.8V 40–50Ah battery is recommended.
- Outdoor-ready build: aluminium alloy bracket and IP66 equipment box are designed for remote jobsite, farm, construction and property installations.
What is included
- 100W aluminium alloy solar bracket × 1 kit
- 100W solar panel × 1
- SZGOING IP66 IoT equipment box × 1
- 4G antenna × 1 and WiFi antenna × 1
- Pole adapter × 1 kit
- Installation tool kit × 1
Not included: cameras, battery, mounting pole, SIM data plan and installation labour. A data SIM with 100MB test data may be pre-installed for supported destinations; confirm the destination and data requirements before ordering.
Power and equipment specifications
| Product model | CS100-G432 |
| Solar panel maximum power | 100W |
| Voltage at maximum power (Vmp) | 18V |
| Current at maximum power (Imp) | 5.56A |
| Open-circuit voltage (Voc) | 21.6V |
| Short-circuit current (Isc) | 6.11A |
| Solar panel dimensions | 950 × 530 × 30mm |
| Solar panel weight | 5.6kg |
| Power control system | 12V 20A |

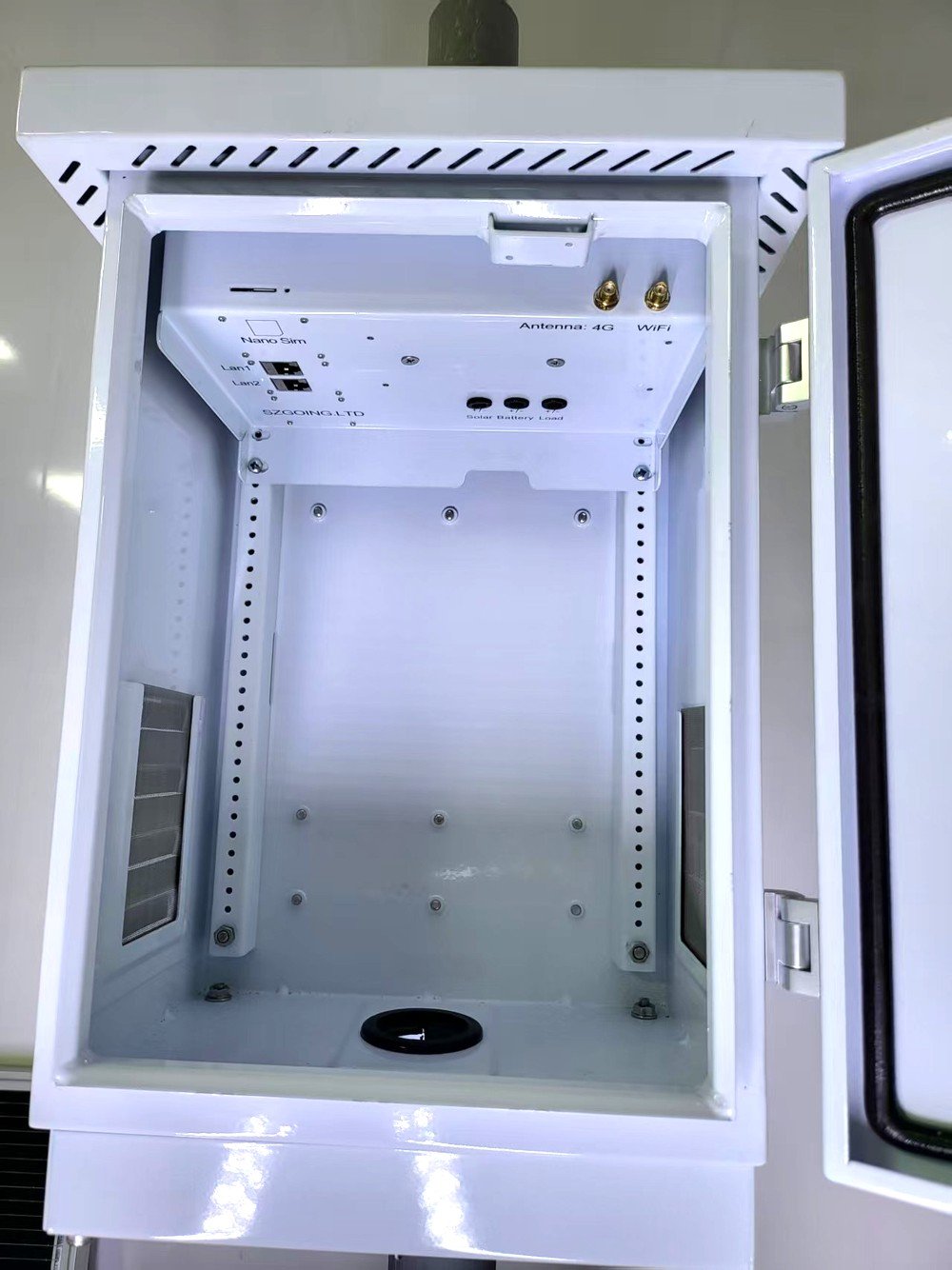

| Equipment box | 400 × 300 × 200mm, IP66 |
| Camera support | Two dome/bullet cameras or one PTZ camera; listed camera resolution up to 8MP |
| WiFi | IEEE 802.11b/g/n, 2.4GHz |
| Wired network | 2 × RJ45 LAN ports |
| SIM card | 4G Nano-SIM slot |
| Battery support | 12V lead-acid, 18650 lithium, LiFePO4 and other 12V battery types |
| Recommended battery | LiFePO4 12.8V 40–50Ah (not included) |
| Bracket material | Aluminium alloy |
| Kit weight | 23kg |
| Warranty | 1 year |
| Customisation | OEM / ODM available |
| Supplier-listed compliance | CE and FCC |
4G LTE and WiFi connectivity
The integrated router supports 4G, 2.4GHz WiFi and wired equipment. The supplier lists the following regional bands:
| Europe / Asia / Africa | LTE-FDD B1/B3/B7/B8/B20; LTE-TDD B38/B40/B41; WCDMA B1/B8; GSM 900/1800 |
| Americas | LTE-FDD B1/B2/B4/B12/B13/B17; WCDMA B1/B2 |
| Australia | FDD B1/B3/B5/B7/B8/B20, optional 700MHz; TDD B38/B39/B40/B41; GSM 900/1800; EVDO 800; TD-SCDMA B34/B39; WCDMA B1/B5/B8 |
LTE band variants and carrier compatibility must be confirmed for the destination before ordering.
Which cameras and other IoT devices can it support?
The CS100-G432 is not limited to cameras. Its built-in 4G router, 2.4GHz WiFi and two RJ45 data ports can connect compatible IP equipment, while the 12V 20A solar power controller can support suitable low-voltage devices within the system’s total power budget.
This makes the equipment box suitable for compatible network equipment, IoT gateways, site-monitoring controllers and project-specified sensor or control hardware. Device voltage, current draw, connectors, weather rating, enclosure space and wiring protection must be reviewed before installation.
The two RJ45 ports are network connections. PoE output and generic USB or RS485 support are not assumed; confirm the exact connector and power requirement for each IoT device before ordering.
The enclosure is designed to support two dome or bullet cameras, or one PTZ camera. Camera hardware is sold separately. For a camera-included system, compare the SZGOING CS100 solar camera or browse all solar powered construction site security cameras.
Deployment considerations
Solar output varies with location, season, panel angle and weather. Choose the battery capacity from the actual camera and router load, required autonomy and local winter sun conditions. The source listing recommends a LiFePO4 12.8V 40–50Ah battery; final capacity should be reviewed for each installation.
Orders ship DDP door-to-door by sea or rail plus local express. Typical transit is 3–4 weeks. The supplier allows OEM and ODM customisation.
Frequently asked questions
Does the system include a camera?
No. The CS100-G432 is the solar power, 4G/WiFi networking and outdoor equipment platform. Camera hardware is sold separately.
Does the kit include the battery?
No. It supports several 12V battery types. The supplier recommends a LiFePO4 12.8V 40–50Ah battery for this configuration.
Can it support two cameras?

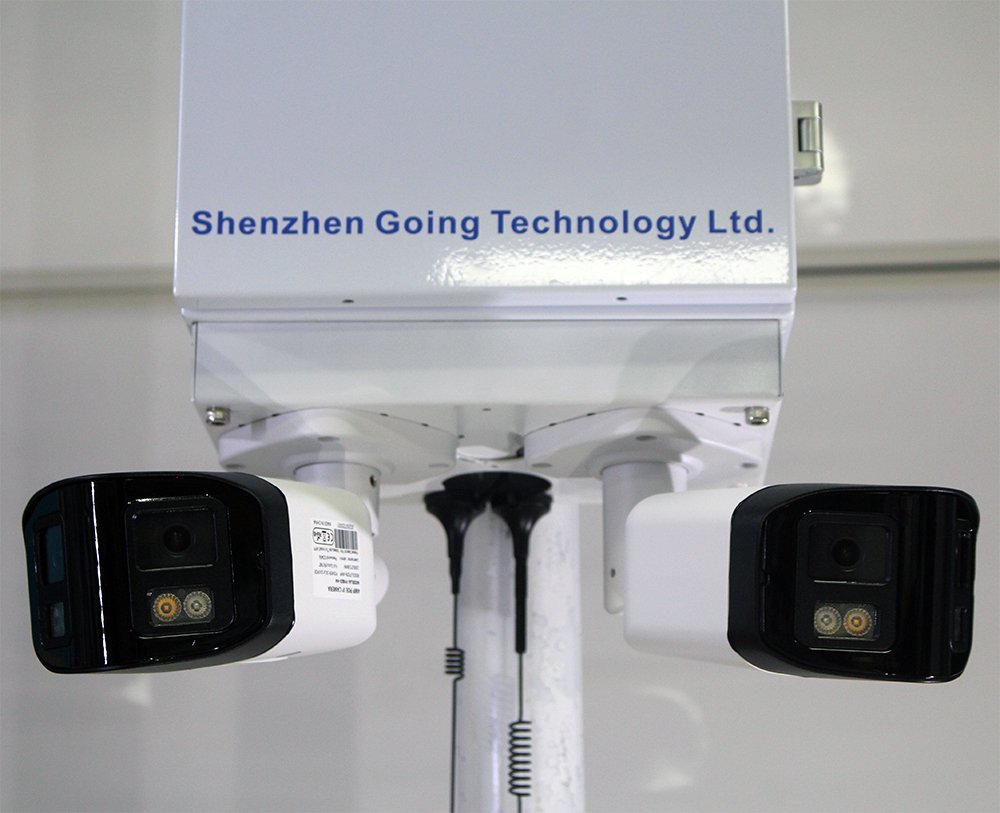

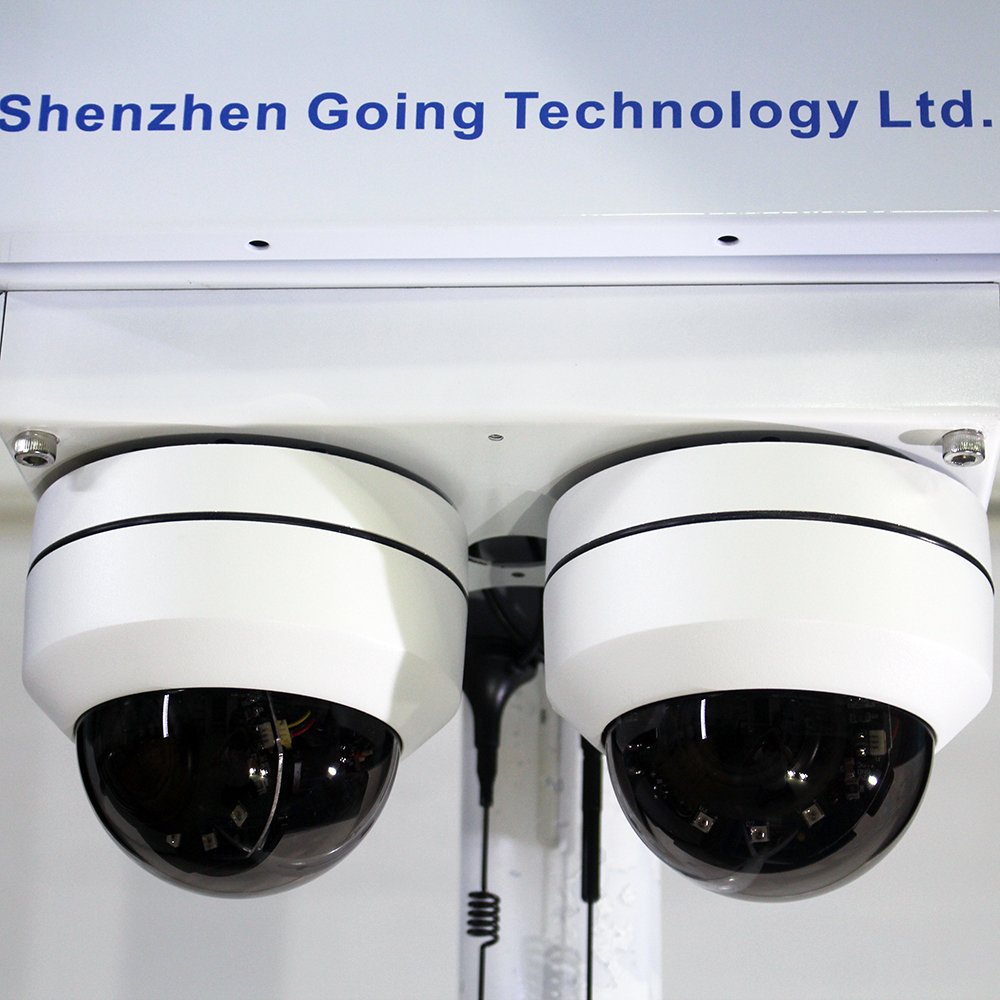

Yes. The equipment box supports two dome or bullet cameras, or one PTZ camera, installed directly on the enclosure.
Can I use 4G, WiFi and wired network equipment?
Yes. The system provides a 4G Nano-SIM slot, 2.4GHz WiFi and two RJ45 LAN ports.
Is the equipment box weatherproof?
Yes. The equipment box is rated IP66. Install it with suitable sealing, drainage and mounting for the site.
Can SZGOING customise the system for a project?
Yes. OEM and ODM customisation are available. Contact SZGOING with the camera load, destination, battery requirement and quantity for a project-specific quote.
Can it support devices other than cameras?
Yes. Compatible IoT and network equipment can use the 4G connection, 2.4GHz WiFi or the two RJ45 data ports, subject to voltage, current, connector, enclosure and total power-budget review. PoE, USB and RS485 should only be used where confirmed for the exact device and configuration.
