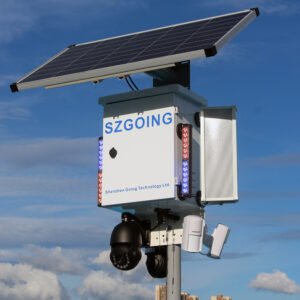

A3SA Solar Powered Jobsite Security Cameras system with PIR alarm
Super Deterrence,360 Degrees View
Hik-Connect app Solar Camera System with PIR Alarm
3 Camera System Just need 1 Sim Card
Demo Video
Hik-Connect App Demo Video
240W Solar powered 4G 3 Camera system with PIR alarm
with 2x PIR motion detector,1x Pre-recorded Speaker,2x Alarm light,1024GB SSD
*This system is powered by solar,It support both 4G and WiFi,Record the HD video to its inside hard disk,So it can work at any
location,especially the construction side,farm,reservoir,etc.
*It can be viewed remotely on mobile phone or PC.Use a mobile phone or a PC we can check the playback from its inside hard disk
remotely.
It will turn on the alarm sound and light when somebody near it.
Main parameters:
1. 240W solar power system and Aluminium alloy soar bracket
2. Support both 4G and WiFi network
3. HIK VISION 1024GB SSD NVR System
4. Alarm input:Outdoor PIR motion detector X2pcs
5. Alarm output:1pcs Pre-recorded Speaker, 2pcs Led light
6. 3pcs HIK VISION 8MP IR Bullet camera
7. 25~30 metter IR night vision
8. Cloud connection,P2P,Easy to remote view on mobile phone/PC
9.Free VMS PC Client software.
10.App name:Hik-Connect
HIK 1024GB SSD inside,Faster access,No need cloud storage fees.
APP: Hik-Connect
View on Hik-Connect App
Alarm Notifications / Alarm Output Control on Hik-Connect APP
Playback on Hik-Connect app
Different playback Speed is optional
Download Recorded File on Hik-Connect app
Construction Camera System Data Sheet
|
Solution name
|
BS240-A3-1T-2SA-LED-HIK
|
|
Compression
|
H.265+
|
|
Video Resolution
|
8MP
|
|
Supported Protocols
|
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP
|
|
System Interface
|
10M/100M self-adapting Ethernet port
|
|
4G/3G/2GBand support
|
12DBI 4G/3G/2G antenna
Europe/Asia/Africal: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39) WCDPA:B1/B5/B8 |
|
WiFi network
|
802.11N/G/B,2.4G
|
|
Alarm input
|
Outdoor PIR Motion detector X2
|
|
Alarm output
|
Pre-record SirenX1,Alarm light x2pcs
|
|
Remote access way
|
P2P, Only need camera series ID and password,No need set DDNS
|
|
Memory
|
1024GB Hard disk
|
|
Record mode
|
manual>alarm>motion detection>timing,By local HDD
|
|
Camera system
|
3pcs 8MP bullet IR camera
|
|
Camera lens
|
2.8mm lens
|
|
IR Range
|
25M IR night vision
|
|
Solar system
|
240W,120W solar panel x2pcs
Maximum Power(Pmax):120W |
|
Server box size
|
400x250x500mm
|
|
Power Control System
|
20A
|
|
Solar bracket
|
Aluminium alloy
|
|
Battery
|
Support Lead Acid battery,18650 Li battery,Lifepo4 battery and others
|
|
OS for CMS
|
Microsoft Windows XP/2003/Vista/win7/win8/win10
|
|
Kit Weight
|
60KG
|
Packing List:(What is included)
1.8MP Bullet amera 2.8mm wide lens x3pcs
2.120W Aluminium alloy solar bracket x2kit
3.120W solar panel x2pcs
4.Instal tool x1kit,
5.Serve box x1pcs(Installed 4G WIFI Network System,1024GB Hik vision NVR System,Power Control System,Alarm System)
6.Outdoor PIR motion sensor x2pcs
7.Pre-record speaker x1pcs
8. Led light x2pcs
9.WiFi Antwnnas x1pcs,4G Antwnnas x1pcs
10.Sim Card x1pcs (Need month plan,or use your sim card)
11.Pole adapter x1kit
(for Diameter=60mm/2.36inch pole,please make notice if need other size,max support pole Diameter=170mm/6.69inch)
Not include:
1.Pole
2.Battery
Suggest 50-100ah 12.8V LifePO4 Battery
Seller’s Shipping Method:
DDP:Sea+Local Express Shipping Door To Door Tax Included
Shipping time:3~4 Weeks
Data Sim Card
We will put a data sim card to sim card slot for most countries,The system got internet ready.It has 100M free data
for you to test the system,Lower Cost Data Plan.You can use your own sim card if you don’t like its data plan.
it will auto-select the local best signal operators
*USA:AT&T, T-Mobile
*Europe:KPN, Hutchison 3G UK, 02，E-Plu
*Australia:OPTUS
